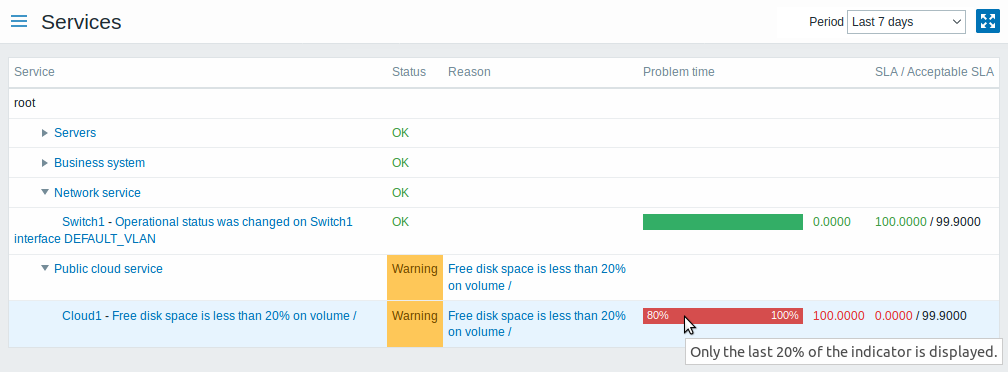

In the Monitoring → Services section the status of IT infrastructure or business services is displayed.
A list of the existing services is displayed along with data of their status and SLA. From the drop-down in the upper right corner you can select a desired period for display.
|Status||Status of service:
OK - no problems
(trigger color and severity) - indicates a problem and its severity
|Reason||Indicates the reason of problem (if any).|
|Problem time||Displays SLA bar. Green/red ratio indicates the proportion of availability/problems. The bar displays the last 20% of SLA (from 80% to 100%).
The bar contains a link to a graph of availability data.
|SLA/Acceptable SLA||Displays current SLA/expected SLA value. If current value is below the acceptable level, it is displayed in red.|

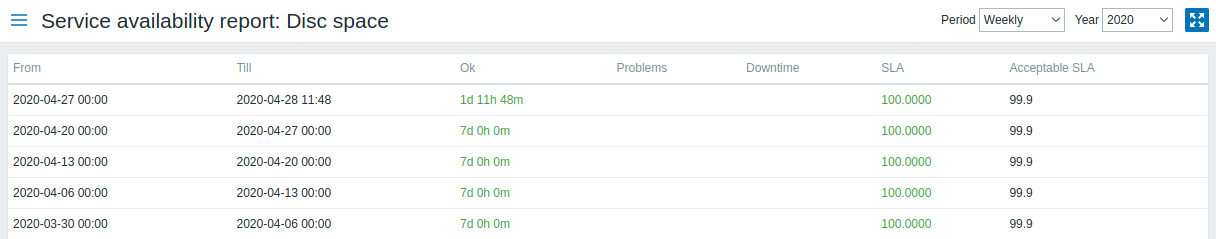

You can also click on the service name to access the Service availability report.
Here you can assess service availability data over a longer period of time on daily/weekly/monthly/yearly basis.
View mode buttons being common for all sections are described on the Monitoring page.
