6 Screens

Overview

In the Configuration → Screens section users can configure and maintain screens.

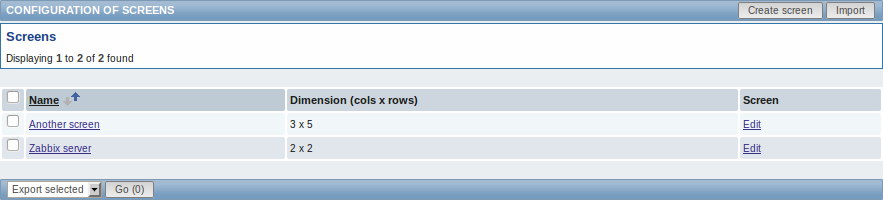

A listing of existing screens with their details is displayed.

Displayed data:

Column Description
Name Name of the screen. By clicking on the screen name you can open the grid of screen elements for editing.
Dimensions The number of columns and rows of the screen.
Screen Click on the Edit link to edit general screen properties (name and dimensions).

To create a new screen, click on the Create screen button in the top right-hand corner. To import a screen from an XML file, click on the Import button in the top right-hand corner.

Mass editing options

A dropdown below the list offers some mass-editing options:

  • Export selected - export the screens to an XML file
  • Delete selected - delete the screens

To use these options, mark the check-boxes before the respective screens, then select the required option and click on "Go".
