5 Host screens

Overview

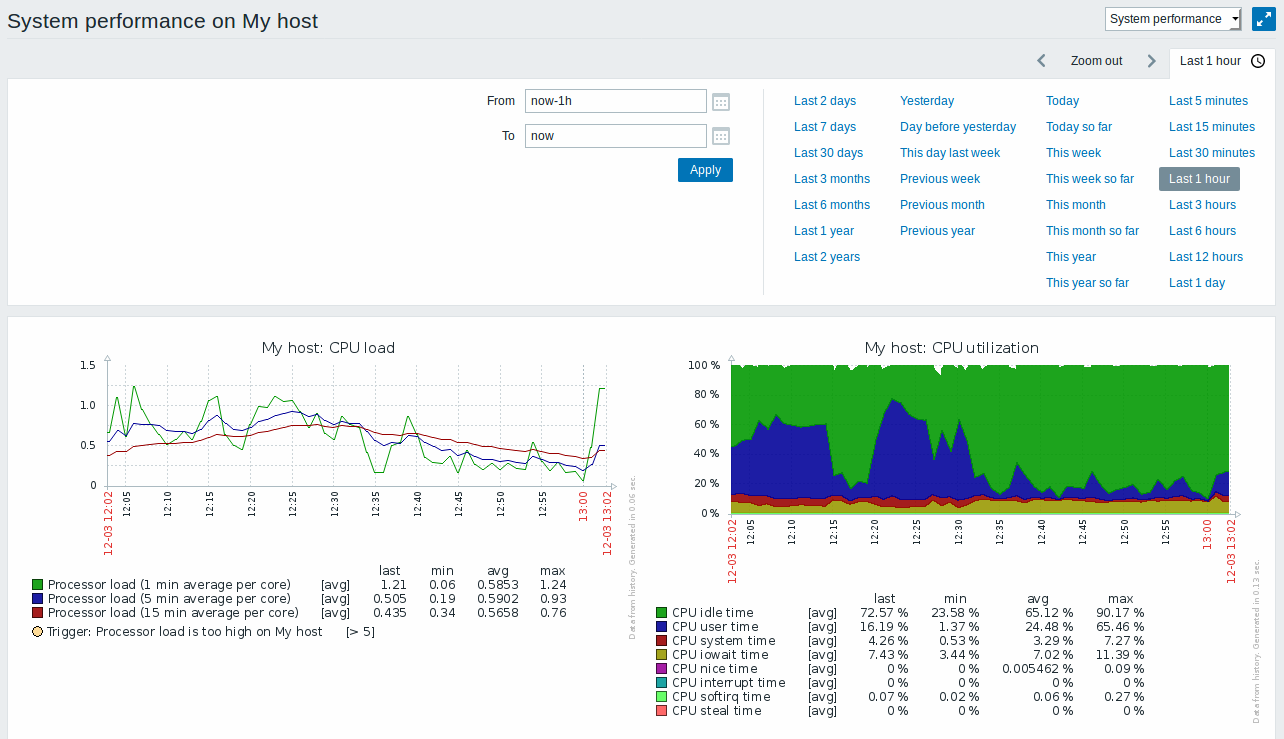

Host screens look similar to global screens, however, host screens display data about the host only. Host screens are configured on the template level and then are generated for a host, once the template is linked to the host.

Host screens cannot be configured or directly accessed in the MonitoringScreens section, which is reserved for global screens. The ways to access host screens are listed below in this section.

Accessing host screens

Access to host screens is provided:

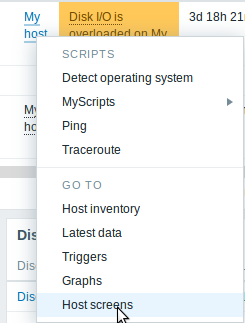

  • From the host menu that is available in many frontend locations:
    • click on the host name and then select Host screens from the drop-down menu

  • When searching for a host name in global search:
    • click on the Screens link provided in search results
  • When clicking on a host name in InventoryHosts:
    • click on the Screens link provided
