2 Problems

Overview

In Monitoring → Problems you can see what problems you currently have. Problems are those triggers that are in the "Problem" state.

Column Description
Time Problem start time is displayed.
Severity Problem severity is displayed.
Problem severity is based on the severity of the underlying problem trigger. Colour of the trigger severity is used as cell background. For resolved problems, green background is used.
Recovery time Problem resolution time is displayed.
Status Problem status is displayed:
Problem - unresolved problem
Resolved - recently resolved problem. You can hide recently resolved problems using the filter.
New and recently resolved problems blink for 30 minutes. Resolved problems are displayed for 30 minutes in total. Both of these values are configurable in AdministrationGeneralTrigger displaying options.
Info An green information icon is displayed if a problem is closed by global correlation or manually by acknowledgement. Rolling a mouse over the icon will display more details:
Host Problem host is displayed.
Problem Problem name is displayed.
Problem name is based on the name of the underlying problem trigger.
Duration Problem duration is displayed.
See also: negative problem duration
Ack The acknowledgement status of the problem is displayed:
Yes - green text indicating that the problem is acknowledged. A problem is considered to be acknowledged if all events for it are acknowledged.
No - a red link indicating unacknowledged events.
If you click on the link you will be taken to a bulk acknowledgement screen where all problems for this trigger can be acknowledged at once.
This column is displayed if problem acknowledgement is activated in AdministrationGeneral.
Actions Action status is displayed:
In progress - action is being taken
Done - action is completed
Failures - action has failed
The number of actions taken on the problem (such as notifications sent or executed remote commands) is also displayed.
Tags Event tags are displayed (if any).

Negative problem duration

It is actually possible in some common situations to have negative problem duration i.e. when the problem resolution time is earlier than problem creation time, e. g.:

  • If some host is monitored by proxy and a network error happens, leading to no data received from the proxy for a while, the item.nodata() trigger will be fired by the server. When the connection is restored, the server will receive item data from the proxy having a time from the past. Then, the item.nodata() problem will be resolved and it will have a negative problem duration;
  • When item data that resolve the problem event are sent by Zabbix sender and contain a timestamp earlier than the problem creation time, a negative problem duration will also be displayed.

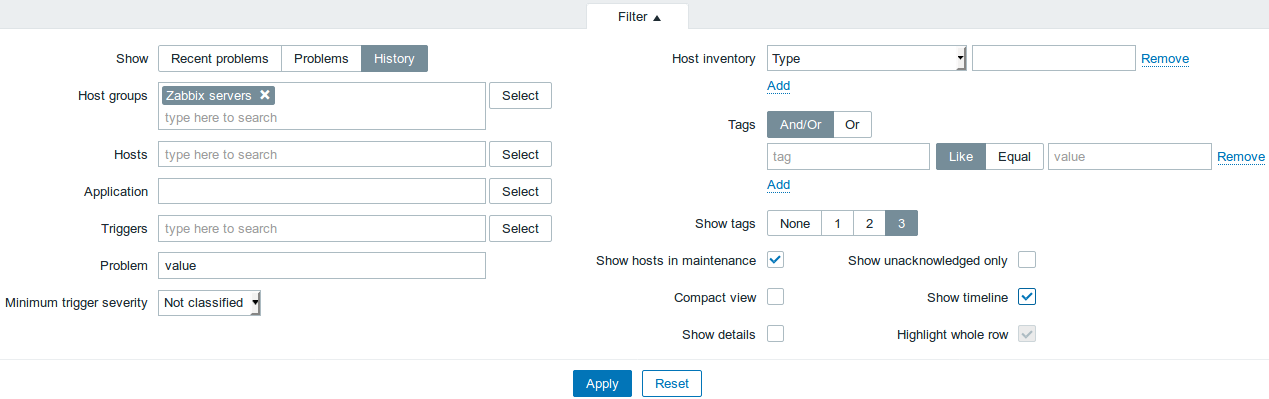

Using filter

You can use the filter to display only the problems you are interested in. The filter is located above the table.

Parameter Description
Show Filter by problem status:
Recent problems - unresolved and recently resolved problems are displayed (default)
Problems - unresolved problems are displayed
History - history of all events is displayed
Host group Filter by one or more host groups.
Specifying a parent host group implicitly selects all nested host groups.
Host Filter by one or more hosts.
Application Filter by application name.
Trigger Filter by one or more triggers.
Problem Filter by problem name.
Minimum trigger severity Filter by minimum trigger severity.
Age less than Filter by how old the problem is.
Host inventory Filter by inventory type and value.
Tags Filter by event tag name and value.
Several conditions can be set. There are two calculation types for conditions:
And/Or - all conditions must be met, conditions having same tag name will be grouped by Or condition
Or - enough if one condition is met
There are two ways of matching the tag value:
Like - similar string match
Equal - exact case-sensitive string match
Show tags Select the number of displayed tags:
None- no Tags column in Monitoring → Problems
1- Tags column contains one tag
2- Tags column contains two tags
3- Tags column contains three tags
To see all tags for the problem roll your mouse over the three dots icon.
Show hosts in maintenance Mark the checkbox to display problems of hosts in maintenance too.
Compact view Mark the checkbox to enable compact view.
Show details Mark the checkbox to display underlying trigger expressions of the problems. Disabled if Compact view checkbox is marked.
Show unacknowledged only Mark the checkbox to display unacknowledged problems only.
Show timeline Timeline row and grouping is visible when the checkbox is marked. Disabled if Compact view checkbox is marked.
Highlight whole row Full line highlighting for unresolved problems is enabled when the checkbox is marked. Enabled only if Compact view checkbox is marked.

Viewing details

The times for problem start and recovery in Monitoring → Problems are links. Clicking on them opens more details of the event.

Buttons

The button to the right offers the following option:

Export content from all pages to a CSV file.

View mode buttons, being common for all sections, are described on the Monitoring page.

Using filter

You can use the filter to display only the problems you are interested in. For better search performance, data is searched with macros unresolved.

The filter is located above the table. Favorite filter settings can be saved as tabs and then quickly accessed by clicking on the tabs above the filter.

Parameter Description
Show Filter by problem status:
Recent problems - unresolved and recently resolved problems are displayed (default)
Problems - unresolved problems are displayed
History - history of all events is displayed
Host groups Filter by one or more host groups.
Specifying a parent host group implicitly selects all nested host groups.
Hosts Filter by one or more hosts.
Triggers Filter by one or more triggers.
Problem Filter by problem name.
Severity Filter by trigger (problem) severity.
Age less than Filter by how old the problem is.
Host inventory Filter by inventory type and value.
Tags Filter by event tag name and value. It is possible to include as well as exclude specific tags and tag values. Several conditions can be set. Tag name matching is always case-sensitive.
There are several operators available for each condition:
Exists - include the specified tag names
Equals - include the specified tag names and values (case-sensitive)
Contains - include the specified tag names where the tag values contain the entered string (substring match, case-insensitive)
Does not exist - exclude the specified tag names
Does not equal - exclude the specified tag names and values (case-sensitive)
Does not contain - exclude the specified tag names where the tag values contain the entered string (substring match, case-insensitive)
There are two calculation types for conditions:
And/Or - all conditions must be met, conditions having the same tag name will be grouped by the Or condition
Or - enough if one condition is met
When filtered, the tags specified here will be displayed first with the problem, unless overridden by the Tag display priority (see below) list.
Show tags Select the number of displayed tags:
None - no Tags column in Monitoring → Problems
1 - Tags column contains one tag
2 - Tags column contains two tags
3 - Tags column contains three tags
To see all tags for the problem roll your mouse over the three dots icon.
Tag name Select tag name display mode:
Full - tag names and values are displayed in full
Shortened - tag names are shortened to 3 symbols; tag values are displayed in full
None - only tag values are displayed; no names
Tag display priority Enter tag display priority for a problem, as a comma-separated list of tags (for example: Services,Applications,Application). Tag names only should be used, no values. The tags of this list will always be displayed first, overriding the natural ordering by alphabet.
Show operational data Select the mode for displaying operational data:
None - no operational data is displayed
Separately - operational data is displayed in a separate column
With problem name - append operational data to the problem name, using parentheses for the operational data
Show suppressed problems Mark the checkbox to display problems that would otherwise be suppressed (not shown) because of host maintenance.
Compact view Mark the checkbox to enable compact view.
Show details Mark the checkbox to display underlying trigger expressions of the problems. Disabled if Compact view checkbox is marked.
Show unacknowledged only Mark the checkbox to display unacknowledged problems only.
Show timeline Mark the checkbox to display the visual timeline and grouping. Disabled if Compact view checkbox is marked.
Highlight whole row Mark the checkbox to highlight the full line for unresolved problems. The problem severity color is used for highlighting.
Enabled only if the Compact view checkbox is marked in the standard blue and dark themes. Highlight whole row is not available in the high-contrast themes.
Tabs for favorite filters

Frequently used sets of filter parameters can be saved in tabs.

To save a new set of filter parameters, open the Home tab, and configure the filter settings, then press the Save as button. In a new popup window, define Filter properties.


Parameter Description
Name The name of the filter to display in the tab list.
Show number of records Check, if you want the number of problems to be displayed next to the tab name.
Set custom time period Check to set specific default time period for this filter set. If set, you will only be able to change the time period for this tab by updating filter settings. For tabs without a custom time period, the time range can be changed by pressing the time selector button in the top right corner (button name depends on selected time interval: This week, Last 30 minutes, Yesterday, etc.).
This option is available only for filters in Monitoring→Problems.
From/To Time period start and end in absolute (Y-m-d H:i:s) or relative time syntax (now-1d). Available, if Set custom time period is checked.

To edit Filter properties of an existing filter, press the gear symbol next to the active tab name.


Notes:

  • To hide a filter, press on the name of the current tab. Press on the active tab name again to open the filter.
  • Filter tabs can be re-arranged by dragging and dropping.
  • Keyboard navigation is supported: use arrows to switch between tabs, press Enter to open.
  • Pressing the arrow down icon in the upper right corner will open the full list of saved filter tabs as a drop-down menu.

To share filters, copy and send to others a URL of an active filter. After opening this URL, other users will be able to save this set of parameters as a permanent filter in their Zabbix account.
See also: Page parameters.

Filter buttons
filter_apply.png Apply specified filtering criteria (without saving).
filter_reset.png Reset current filter and return to saved parameters of the current tab. On the Home tab, this will clear the filter.
filter_save_as.png Save current filter parameters in a new tab. Only available on the Home tab.
filter_update.png Replace tab parameters with currently specified parameters. Not available on the Home tab.

Event menu

Clicking on the problem name brings up the event menu:

The event menu allows to:

  • filter the problems of the trigger
  • access the trigger configuration
  • access a simple graph/item history of the underlying item(s)
  • access an external ticket of the problem (if configured, see the Include event menu entry option when configuring webhooks)
  • execute global scripts (these scripts need to have their scope defined as 'Manual event action'). This feature may be handy for running scripts used for managing problem tickets in external systems.

Viewing details

The times for problem start and recovery in Monitoring → Problems are links. Clicking on them opens more details of the event.

Note how the problem severity differs for the trigger and the problem event - for the problem event it has been updated using the Update problem screen.

In the action list, the following icons are used to denote the activity type:

  • icon_generated.png - problem event generated
  • icon_message.png - message has been sent
  • icon_acknowledged.png - problem event acknowledged
  • icon_unacknowledged.png - problem event unacknowledged
  • icon_comment2.png - a comment has been added
  • icon_sev_up1.png - problem severity has been increased (e.g. Information → Warning)
  • icon_sev_down1.png - problem severity has been decreased (e.g. Warning → Information)
  • icon_severity_back.png - problem severity has been changed, but returned to the original level (e.g. Warning → Information → Warning)
  • icon_remote.png - a remote command has been executed
  • icon_recovery.png - problem event has recovered
  • icon_closed.png - the problem has been closed manually
