2 Item value preprocessing

Overview

In preprocessing it is possible to apply transformations to the received item values before saving them to the database.

There are many uses for this functionality. You may want to, for example:

• multiply the network traffic value by "8" to convert bytes into bits;
• get the per-second statistics of an incrementally rising value;
• apply a regular expression to the value;
• use a custom script on the value;
• choose to discard unchanged values.

One or several transformations are possible. Transformations (preprocessing steps) are executed in the order in which they are defined.

To make sure that the configured preprocessing pipeline works, it is possible to test it.

For log items, log metadata (without value) will always reset the item unsupported state and make the item supported again, even if the initial error occurred after receiving a log value from agent.

Preprocessing is done by Zabbix server or proxy (if items are monitored by proxy).

Note that all values passed to preprocessing are of the string type; conversion to the desired value type (as defined in item configuration) is performed at the end of the preprocessing pipeline. Conversions, however, may also take place if required by the corresponding preprocessing step. See preprocessing details for more technical information.

See also: Regular expression preprocessing example

Configuration

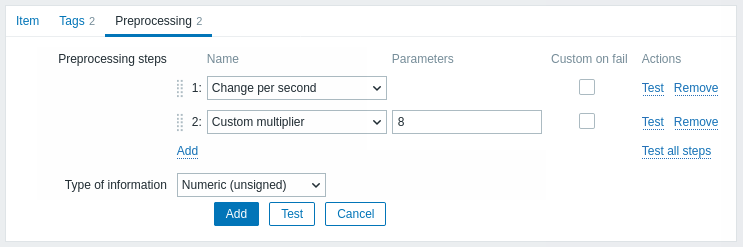

Preprocessing steps are defined in the Preprocessing tab of the item configuration form.

Click on Add to select a supported transformation.

The Type of information field is displayed at the bottom of the tab when at least one preprocessing step is defined. If required, it is possible to change the type of information without leaving the Preprocessing tab. See Creating an item for the detailed parameter description.

Supported transformations

All supported transformations are listed below. Click on the transformation name to see full details about it.

Note that for Change and Throttling preprocessing steps, Zabbix has to remember the last value to calculate/compare the new value as required. These previous values are handled by the preprocessing manager. If Zabbix server or proxy is restarted or there is any change made to preprocessing steps, the last value of the corresponding item is reset, resulting in:

• for Simple change, Change per second steps - the next value will be ignored because there is no previous value to calculate the change from;
• for Discard unchanged, Discard unchanged with heartbeat steps - the next value will never be discarded, even if it should have been because of discarding rules.

Regular expression

Match the value to the regular expression and replace with the required output.

Parameters:

• pattern - the regular expression;

• output - the output formatting template. An \N (where N=1…9) escape sequence is replaced with the Nth matched group. A \0 escape sequence is replaced with the matched text.

Comments:

• A failure to match the input value will make the item unsupported;

• The regular expression supports extraction of maximum 10 captured groups with the \N sequence;

• If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

• Please refer to regular expressions section for some existing examples.

Replace

Find the search string and replace it with another (or nothing).

Parameters:

• search string - the string to find and replace, case-sensitive (required);

• replacement - the string to replace the search string with. The replacement string may also be empty effectively allowing to delete the search string when found.

Comments:

• All occurrences of the search string will be replaced;
• It is possible to use escape sequences to search for or replace line breaks, carriage return, tabs and spaces "\n \r \t \s"; backslash can be escaped as "\\" and escape sequences can be escaped as "\\n";
• Escaping of line breaks, carriage return, tabs is automatically done during low-level discovery.

Trim

Remove specified characters from the beginning and end of the value.

Right trim

Remove specified characters from the end of the value.

Left trim

Remove specified characters from the beginning of the value.

XML XPath

Extract value or fragment from XML data using XPath functionality.

Comments:

• For this option to work, Zabbix server (or Zabbix proxy) must be compiled with libxml support;

• Namespaces are not supported;

• If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Examples:

number(/document/item/value) #will extract '10' from <document><item><value>10</value></item></document>
       number(/document/item/@attribute) #will extract '10' from <document><item attribute="10"></item></document>
       /document/item #will extract '<item><value>10</value></item>' from <document><item><value>10</value></item></document>

JSON Path

Extract value or fragment from JSON data using JSONPath functionality.

If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

CSV to JSON

Convert CSV file data into JSON format.

For more information, see: CSV to JSON preprocessing.

XML to JSON

Convert data in XML format to JSON.

For more information, see: Serialization rules.

If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

SNMP walk value

Extract value by the specified OID/MIB name and apply formatting options:

• Unchanged - return hex-string as unescaped hex string;

• UTF-8 from hex-STRING - convert hex-string to UTF-8 string;

• MAC from hex-STRING - validate hex-string as MAC address and return a proper MAC address string (where ' ' are replaced by ':');

• Integer from BITS - convert the first 8 bytes of a bit string expressed as a sequence of hex characters (e.g., "1A 2B 3C 4D") into a 64-bit unsigned integer. In bit strings longer than 8 bytes, consequent bytes will be ignored.

If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

SNMP walk to JSON

Convert SNMP values to JSON.

Specify a field name in the JSON and the corresponding SNMP OID path. Field values will be populated by values in the specified SNMP OID path.

Comments:

• Similar value formatting options as in the SNMP walk value step are available;

• You may use this preprocessing step for SNMP OID discovery;

• If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

SNMP get value

Apply formatting options to the SNMP get value:

• UTF-8 from Hex-STRING - convert hex-string to UTF-8 string;

• MAC from Hex-STRING - validate hex-string as MAC address and return a proper MAC address string (where ' ' are replaced by ':');

• Integer from BITS - convert the first 8 bytes of a bit string expressed as a sequence of hex characters (e.g., "1A 2B 3C 4D") into a 64-bit unsigned integer. In bit strings longer than 8 bytes, consequent bytes will be ignored.

If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Custom multiplier

Multiply the value by the specified integer or floating-point value.

Comments:

• Use this option to convert values received in KB, MBps, etc., into B, Bps. Otherwise, Zabbix cannot correctly set prefixes (K, M, G, etc.).

• Note that if the item type of information is Numeric (unsigned), incoming values with a fractional part will be trimmed (i.e., '0.9' will become '0') before the custom multiplier is applied;

• If you use a custom multiplier or store value as Change per second for items with the type of information set to Numeric (unsigned) and the resulting calculated value is actually a float number, the calculated value is still accepted as a correct one by trimming the decimal part and storing the value as an integer;

• Supported: scientific notation, for example, 1e+70; user macros and LLD macros; strings that include macros, for example, {#MACRO}e+10, {$MACRO1}e+{$MACRO2}. The macros must resolve to an integer or a floating-point number.
• If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Simple change

Calculate the difference between the current and previous value.

Comments:

• This step can be useful to measure a constantly growing value;

• Evaluated as value-prev_value, where value - the current value; prev_value - the previously received value;

• Only one change operation per item ("Simple change" or "Change per second") is allowed;
• If the current value is smaller than the previous value, Zabbix discards that difference (stores nothing) and waits for another value;

• If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Change per second

Calculate the value change (difference between the current and previous value) speed per second.

Comments:

• This step is extremely useful to get the speed per second of a constantly growing value;

• As this calculation may produce floating-point numbers, it is recommended to set the 'Type of information' to Numeric (float), even if the incoming raw values are integers. This is especially relevant for small numbers where the decimal part matters. If the floating-point values are large and may exceed the 'float' field length in which case the entire value may be lost, it is actually suggested to use Numeric (unsigned) and thus trim only the decimal part.

• Evaluated as (value-prev_value)/(time-prev_time), where value - the current value; prev_value - the previously received value; time - the current timestamp; prev_time - the timestamp of the previous value;

• Only one change operation per item ("Simple change" or "Change per second") is allowed;
• If the current value is smaller than the previous value, Zabbix discards that difference (stores nothing) and waits for another value. This helps to work correctly with, for instance, a wrapping (overflow) of 32-bit SNMP counters.

• If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Boolean to decimal

Convert the value from boolean format to decimal.

Comments:

• The textual representation is translated into either 0 or 1. Thus, 'TRUE' is stored as 1 and 'FALSE' is stored as 0. All values are matched in a case-insensitive way. Currently recognized values are, for TRUE - true, t, yes, y, on, up, running, enabled, available, ok, master; for FALSE - false, f, no, n, off, down, unused, disabled, unavailable, err, slave. Additionally, any non-zero numeric value is considered to be TRUE and zero is considered to be FALSE.

• If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Octal to decimal

Convert the value from octal format to decimal.

If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Hexadecimal to decimal

Convert the value from hexadecimal format to decimal.

If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

JavaScript

Enter JavaScript code in the block that appears when clicking in the parameter field or on the pencil icon.

Comments:

• The available JavaScript length depends on the database used;

• For more information, see: Javascript preprocessing.

In range

Define a range that a value should be in by specifying minimum/maximum values (inclusive).

Comments:

• Numeric values are accepted (including any number of digits, optional decimal part and optional exponential part, negative values);

• The minimum value should be less than the maximum;

• At least one value must exist;

• User macros and low-level discovery macros can be used;

• If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Matches regular expression

Specify a regular expression that a value must match.

If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Does not match regular expression

Specify a regular expression that a value must not match.

If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Check for error in JSON

Check for an application-level error message located at JSONPath. Stop processing if succeeded and the message is not empty; otherwise, continue processing with the value that was before this preprocessing step.

Comments:

• These external service errors are reported to the user as is, without adding preprocessing step information;

• No error will be reported in case of failing to parse invalid JSON;

• If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Check for error in XML

Check for an application-level error message located at XPath. Stop processing if succeeded and the message is not empty; otherwise, continue processing with the value that was before this preprocessing step.

Comments:

• These external service errors are reported to the user as is, without adding preprocessing step information;

• No error will be reported in case of failing to parse invalid XML;

• If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Check for error using a regular expression

Check for an application-level error message using a regular expression. Stop processing if succeeded and the message is not empty; otherwise, continue processing with the value that was before this preprocessing step.

Parameters:

• pattern - the regular expression;

• output - the output formatting template. An \N (where N=1…9) escape sequence is replaced with the Nth matched group. A \0 escape sequence is replaced with the matched text.

Comments:

• These external service errors are reported to the user as is, without adding preprocessing step information;

• If you mark the Custom on fail checkbox, it is possible to specify custom error-handling options: either to discard the value, set a specified value, or set a specified error message. In case of a failed preprocessing step, the item will not become unsupported if the option to discard the value or set a specified value is selected.

Check for not supported value

Check if no item value could be retrieved. Specify how the failure should be processed, based on inspecting the returned error message.

Parameters:

• scope - select the error processing scope:
  any error - any error;
  error matches - only the error that matches the regular expression specified in pattern;
  error does not match - only the error that does not match the regular expression specified in pattern

• pattern - the regular expression to match the error to. If any error is selected in the scope parameter, this field is not displayed. If displayed, this field is mandatory.


Comments:

• Normally the absence/failure to retrieve a value would lead to the item becoming unsupported. In this preprocessing step it is possible to modify this behavior by marking the Custom on fail option. The following custom error-handling options are available: Discard value, Set value to (the value can be used in triggers), or Set error to.
• The item will remain supported if Discard value or Set value to is selected;
• Capturing regular expression groups is supported in the Set value to or Set error to fields. An \N (where N=1…9) escape sequence is replaced with the Nth matched group. A \0 escape sequence is replaced with the matched text.
• For this preprocessing step, the Custom on fail checkbox is grayed out and always marked;
• These steps are always executed as the first preprocessing steps and are placed above all others after saving changes to the item.
• Multiple Check for not supported value steps are supported, in the specified order. A step for any error will be automatically placed as the last step in this group.

Discard unchanged

Discard a value if it has not changed.

Comments:

• If a value is discarded, it is not saved in the database and Zabbix server has no knowledge that this value was received. No trigger expressions will be evaluated, as a result, no problems for related triggers will be created/resolved. Functions will work only based on data that is actually saved in the database. As trends are built based on data in the database, if there is no value saved for an hour then there will also be no trends data for that hour.

• Only one throttling option can be specified per item.

Discard unchanged with heartbeat

Discard a value if it has not changed within the defined time period (in seconds).

Comments:

• Positive integer values are supported to specify the seconds (minimum - 1 second);

• Time suffixes can be used (e.g., 30s, 1m, 2h, 1d);

• User macros and low-level discovery macros can be used;

• If a value is discarded, it is not saved in the database and Zabbix server has no knowledge that this value was received. No trigger expressions will be evaluated, as a result, no problems for related triggers will be created/resolved. Functions will work only based on data that is actually saved in the database. As trends are built based on data in the database, if there is no value saved for an hour then there will also be no trends data for that hour.

• Only one throttling option can be specified per item.

Prometheus pattern

Use the following query to extract the required data from Prometheus metrics.

See Prometheus checks for more details.

Prometheus to JSON

Convert the required Prometheus metrics to JSON.

See Prometheus checks for more details.

Macro support

User macros and user macros with context are supported in:

• preprocessing step parameters, including JavaScript code;
• custom error-handling parameters (Set value to and Set error to fields).

Testing

See preprocessing testing.
