5 Network maps

Overview

Network map export contains:

All related images
Map structure (all map settings, all contained elements with their settings, map links and map link status indicators)

Any host groups, hosts, triggers, other maps or other elements that may be related to the exported map are not exported. Thus, if at least one of the elements the map refers to is missing, importing it will fail.

Exporting

To export network maps, do the following:

Go to Monitoring → Maps.

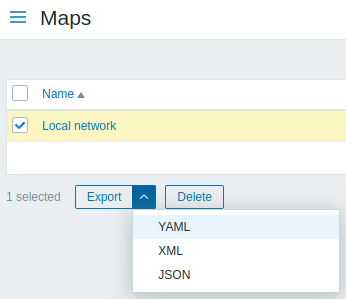

Mark the checkboxes of the network maps to export.
Click Export below the list.

Depending on the selected format, maps are exported to a local file with a default name:

zabbix_export_maps.yaml - in YAML export (default option for export);
zabbix_export_maps.xml - in XML export;
zabbix_export_maps.json - in JSON export.

Importing

To import network maps, do the following:

Go to Monitoring → Maps.

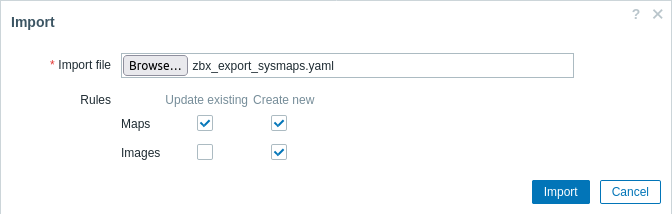

Click Import in the top right corner.
Select the import file.
Mark the required options in import rules.
Click Import in the bottom right corner of the configuration form.

Import rules:

Rule	Description
Update existing	Existing maps will be updated using data from the import file. Otherwise, they will not be updated.
Create new	New maps will be created using data from the import file. Otherwise, they will not be created.

If you uncheck both map options and check the respective options for images, images only will be imported. Image importing is only available to Super admin users.

A success or failure message of the import will be displayed in the frontend.

If replacing an existing image, it will affect all maps that are using this image.

Export format

Export to YAML:

zabbix_export:
         version: '7.0'
         images:
           - name: Zabbix_server_3D_(128)
             imagetype: '1'
             encodedImage: iVBOR...5CYII=
         maps:
           - name: 'Local network'
             width: '680'
             height: '200'
             label_type: '0'
             label_location: '0'
             highlight: '1'
             expandproblem: '1'
             markelements: '1'
             show_unack: '0'
             severity_min: '0'
             show_suppressed: '0'
             grid_size: '50'
             grid_show: '1'
             grid_align: '1'
             label_format: '0'
             label_type_host: '2'
             label_type_hostgroup: '2'
             label_type_trigger: '2'
             label_type_map: '2'
             label_type_image: '2'
             label_string_host: ''
             label_string_hostgroup: ''
             label_string_trigger: ''
             label_string_map: ''
             label_string_image: ''
             expand_macros: '1'
             background: {  }
             iconmap: {  }
             urls: {  }
             selements:
               - elementtype: '0'
                 elements:
                   - host: 'Zabbix server'
                 label: |
                   {HOST.NAME}
                   {HOST.CONN}
                 label_location: '0'
                 x: '111'
                 'y': '61'
                 elementsubtype: '0'
                 areatype: '0'
                 width: '200'
                 height: '200'
                 viewtype: '0'
                 use_iconmap: '0'
                 selementid: '1'
                 icon_off:
                   name: Zabbix_server_3D_(128)
                 icon_on: {  }
                 icon_disabled: {  }
                 icon_maintenance: {  }
                 urls: {  }
                 evaltype: '0'
             shapes:
               - type: '0'
                 x: '0'
                 'y': '0'
                 width: '680'
                 height: '15'
                 text: '{MAP.NAME}'
                 font: '9'
                 font_size: '11'
                 font_color: '000000'
                 text_halign: '0'
                 text_valign: '0'
                 border_type: '0'
                 border_width: '0'
                 border_color: '000000'
                 background_color: ''
                 zindex: '0'
             lines: {  }
             links: {  }

Exported elements

Exported elements are explained in the table below.

Element		Type	Description
images			Root element for images.
	name	string	Unique image name.
	imagetype	integer	Image type. Possible values: 1 - Image; 2 - Background.
	encodedImage	string	Base64 encoded image.
maps			Root element for maps.

Maps

Element		Type	Description
name		string	Unique map name.
width		integer	Map width, in pixels.
height		integer	Map height, in pixels.
label_type		integer	Map element label type. Possible values: 0 - Label; 1 - Host IP address; 2 - Element name; 3 - Status only; 4 - Nothing.
label_location		integer	Map element label location by default. Possible values: 0 - Bottom; 1 - Left; 2 - Right; 3 - Top.
highlight		integer	Enable icon highlighting for active triggers and host statuses. Possible values: 0 - No; 1 - Yes.
expandproblem		integer	Display problem trigger for elements with a single problem. Possible values: 0 - No; 1 - Yes.
markelements		integer	Highlight map elements that have recently changed their status. Possible values: 0 - No; 1 - Yes.
show_unack		integer	Problem display. Possible values: 0 - Count of all problems; 1 - Count of unacknowledged problems; 2 - Count of acknowledged and unacknowledged problems separately.
severity_min		integer	Minimum trigger severity to show on the map by default. Possible values: 0 - Not classified; 1 - Information; 2 - Warning; 3 - Average; 4 - High; 5 - Disaster.
show_suppressed		integer	Display problems, which would otherwise be suppressed (not shown) because of host maintenance. Possible values: 0 - No; 1 - Yes.
grid_size		integer	Cell size of a map grid in pixels. Supported if `grid_show` is set to `0`. Possible values: 20, 40, 50, 75 or 100.
grid_show		integer	Display a grid in map configuration. Possible values: 0 - Yes; 1 - No.
grid_align		integer	Automatically align icons in map configuration. Possible values: 0 - Yes; 1 - No.
label_format		integer	Use advanced label configuration. Possible values: 0 - No; 1 - Yes.
label_type_host		integer	Display label as host label. Supported if `label_format` is set to `1`. Possible values: 0 - Label; 1 - Host IP address; 2 - Element name; 3 - Status only; 4 - Nothing; 5 - Custom label.
label_type_hostgroup		integer	Display label as host group label. Supported if `label_format` is set to `1`. Possible values: 0 - Label; 2 - Element name; 3 - Status only; 4 - Nothing; 5 - Custom label.
label_type_trigger		integer	Display label as trigger label. Supported if `label_format` is set to `1`. Possible values: 0 - Label; 2 - Element name; 3 - Status only; 4 - Nothing; 5 - Custom label.
label_type_map		integer	Display label as map label. Supported if `label_format` is set to `1`. Possible values: 0 - Label; 2 - Element name; 3 - Status only; 4 - Nothing; 5 - Custom label.
label_type_image		integer	Display label as image label. Supported if `label_format` is set to `1`. Possible values: 0 - Label; 2 - Element name; 4 - Nothing; 5 - Custom label.
label_string_host		string	Custom label for host elements. Supported if `label_type_host` is set to `5`.
label_string_hostgroup		string	Custom label for host group elements. Supported if `label_type_hostgroup` is set to `5`.
label_string_trigger		string	Custom label for trigger elements. Supported if `label_type_trigger` is set to `5`.
label_string_map		string	Custom label for map elements. Supported if `label_type_map` is set to `5`.
label_string_image		string	Custom label for image elements. Supported if `label_type_image` is set to `5`.
expand_macros		integer	Expand macros in labels in map configuration. Possible values: 0 - No; 1 - Yes.
background			Root element for background image (if any). Supported if `imagetype` is set to `2`.
	name	string	Background image name.
iconmap			Root element for icon mapping (if any).
	name	string	Icon mapping name.
urls			Root element for URLs used by maps or each map element.
	name	string	Link name.
	url	string	Link URL.
	elementtype	integer	Map item type the link belongs to. Possible values: 0 - Host; 1 - Map; 2 - Trigger; 3 - Host group; 4 - Image.
selements			Root element for map selements.
shapes			Root element for map shapes.
	type	integer	Shape type. Possible values: 0 - Rectangle; 1 - Ellipse.
	x	integer	X coordinates of the shape in pixels.
	y	integer	Y coordinates of the shape in pixels.
	width	integer	Shape width.
	height	integer	Shape height.
	text	string	Text inside of shape.
	font	integer	Text font style. Possible values: 0 - Georgia, serif; 1 - "Palatino Linotype", "Book Antiqua", Palatino, serif; 2 - "Times New Roman", Times, serif; 3 - Arial, Helvetica, sans-serif; 4 - "Arial Black", Gadget, sans-serif; 5 - "Comic Sans MS", cursive, sans-serif; 6 - Impact, Charcoal, sans-serif; 7 - "Lucida Sans Unicode", "Lucida Grande", sans-serif; 8 - Tahoma, Geneva, sans-serif; 9 - "Trebuchet MS", Helvetica, sans-serif; 10 - Verdana, Geneva, sans-serif; 11 - "Courier New", Courier, monospace; 12 - "Lucida Console", Monaco, monospace.
	font_size	integer	Font size in pixels.
	font_color	string	Font color represented in hexadecimal code.
	text_halign	integer	Horizontal alignment of text. Possible values: 0 - Center; 1 - Left; 2 - Right.
	text_valign	integer	Vertical alignment of text. Possible values: 0 - Middle; 1 - Top; 2 - Bottom.
	border_type	integer	Type of the border for the shape. Possible values: 0 - None; 1 - Bold line; 2 - Dotted line; 3 - Dashed line.
	border_width	integer	Width of the border in pixels.
	border_color	string	Border color represented in hexadecimal code.
	background_color	string	Background (fill) color represented in hexadecimal code.
	zindex	integer	Value for ordering all shapes and lines (z-index).
lines			Root element for map lines.
	x1	integer	X coordinates of the line point 1 in pixels.
	y1	integer	Y coordinates of the line point 1 in pixels.
	x2	integer	X coordinates of the line point 2 in pixels.
	y2	integer	Y coordinates of the line point 2 in pixels.
	line_type	integer	Line type. Possible values: 0 - None; 1 - Bold line; 2 - Dotted line; 3 - Dashed line.
	line_width	integer	Line width in pixels.
	line_color	string	Line color represented in hexadecimal code.
	zindex	integer	Value for ordering all shapes and lines (z-index).
links			Root element for links between map elements.
	drawtype	integer	Link style. Possible values: 0 - Line; 2 - Bold line; 3 - Dotted line; 4 - Dashed line.
	color	string	Link color (6 symbols, hex).
	label	string	Link label.
	selementid1	id	ID of one element to connect.
	selementid2	id	ID of the other element to connect.
linktriggers			Root element for link status indicators.

See also: Map object (refer to the relevant property with a matching name).

Map selements

Element		Type	Description
elementtype		integer	Map element type. Possible values: 0 - Host; 1 - Map; 2 - Trigger; 3 - Host group; 4 - Image.
elements			Root element for Zabbix entities (host, host group, map, etc.) that are represented on the map. All entities have their respective element (`host`, etc.; see, for example, Export format).
label		string	Icon label.
label_location		integer	Label location. Possible values: -1 - Use map default; 0 - Bottom; 1 - Left; 2 - Right; 3 - Top.
x		integer	Location on the X axis.
y		integer	Location on the Y axis.
elementsubtype		integer	Element subtype. Supported if `elementtype` is set to `3`. Possible values: 0 - Single host group; 1 - All host groups.
areatype		integer	Area size. Supported if `elementtype` is set to `1`. Possible values: 0 - Same as whole map; 1 - Custom size.
width		integer	Width of area. Supported if `areatype` is set to `1`.
height		integer	Height of area. Supported if `areatype` is set to `1`.
viewtype		integer	Area placement algorithm. Supported if `elementsubtype` is set to `1`. Possible values: 0 - Place evenly in the area.
use_iconmap		integer	Use icon mapping for this element. Relevant only if icon mapping is activated on map level. Possible values: 0 - No; 1 - Yes.
selementid		id	Unique element record ID.
icon_off			Root element for image to use when element is in 'OK' status.
	name	string	Unique image name.
icon_on			Root element for image to use when element is in 'Problem' status.
	name	string	Unique image name.
icon_disabled			Root element for image to use when element is disabled.
	name	string	Unique image name.
icon_maintenance			Root element for image to use when element is in maintenance.
	name	string	Unique image name.
urls			Root element for URLs used by maps or each map element.
	name	string	Link name.
	url	string	Link URL.
evaltype		integer	Evaluation type for tags.
tags			Root element for problem tags (for host and host group elements). If tags are given, only problems with these tags will be displayed on the map.
	tag	string	Tag name.
	value	string	Tag value.
	operator	integer	Operator.

See also: Map element object (refer to the relevant property with a matching name).

Map link status indicators

Element		Type	Description
drawtype		integer	Link style when trigger is in the 'Problem' state. Possible values: 0 - Line; 2 - Bold line; 3 - Dotted line; 4 - Dashed line.
color		string	Link color (6 symbols, hex) when trigger is in the 'Problem' state.
trigger			Root element for trigger used to indicate link status.
	description	string	Trigger name.
	expression	string	Trigger expression.
	recovery_expression	string	Trigger recovery expression.

See also: Map link trigger object (refer to the relevant property with a matching name).
