1 Action log
Overview
In the action log widget, you can display details of action operations (notifications, remote commands). It replicates information from Reports → Action log.
Configuration

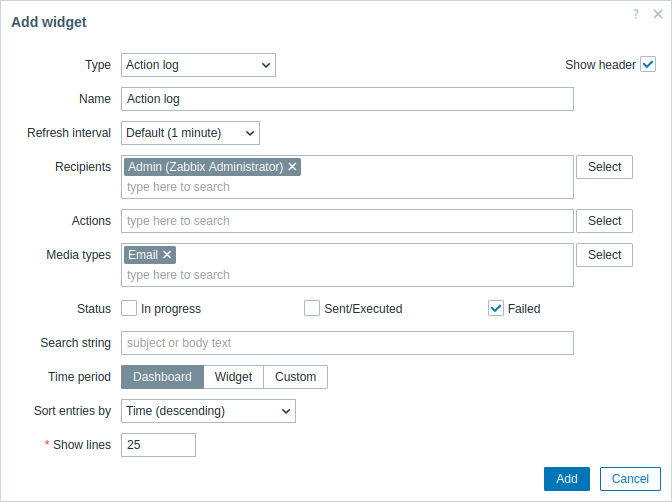

To configure, select Action log as type:
In addition to the parameters that are common for all widgets, you may set the following specific options:
| Recipients | Filter entries by recipients. This field is auto-complete, so starting to type the name of a recipient will offer a dropdown of matching recipients. If no recipients are selected, details of action operations for all recipients will be displayed. |
| Actions | Filter entries by actions. This field is auto-complete, so starting to type the name of an action will offer a dropdown of matching actions. If no actions are selected, details of action operations for all actions will be displayed. |
| Media types | Filter entries by media types. This field is auto-complete, so starting to type the name of a media type will offer a dropdown of matching media types. If no media types are selected, details of action operations for all media types will be displayed. |
| Status | Mark the checkbox to filter entries by the respective status: In progress - action operations that are in progress are displayed; Sent/Executed - action operations that have sent a notification or have been executed are displayed; Failed - action operations that have failed are displayed. |
| Search string | Filter entries by the content of the message/remote command. If you enter a string here, only those action operations whose message/remote command contains the entered string will be displayed. Macros are not resolved. |
| Time period | Filter entries by time period. Select the data source for the time period: Dashboard - set the Time period selector as the data source; Widget - set a compatible widget specified in the Widget parameter as the data source; Custom - set the time period specified in the From and To parameters as the data source; if set, a clock icon will be displayed in the top right corner of the widget, indicating the set time on mouseover. |
| Widget | Enter or select a compatible widget (Graph, Graph (classic), Graph prototype) as the data source for the time period. This parameter is available if Time period is set to "Widget". |
| From | Enter or select the start of the time period. Relative time syntax ( now, now/d, now/w-1w, etc.) is supported.This parameter is available if Time period is set to "Custom". |
| To | Enter or select the end of the time period. Relative time syntax ( now, now/d, now/w-1w, etc.) is supported.This parameter is available if Time period is set to "Custom". |
| Sort entries by | Sort entries by: Time (descending or ascending); Type (descending or ascending); Status (descending or ascending); Recipient (descending or ascending). |
| Show lines | Set how many action log lines will be displayed in the widget. |
