1 Configuring a network discovery rule

Overview

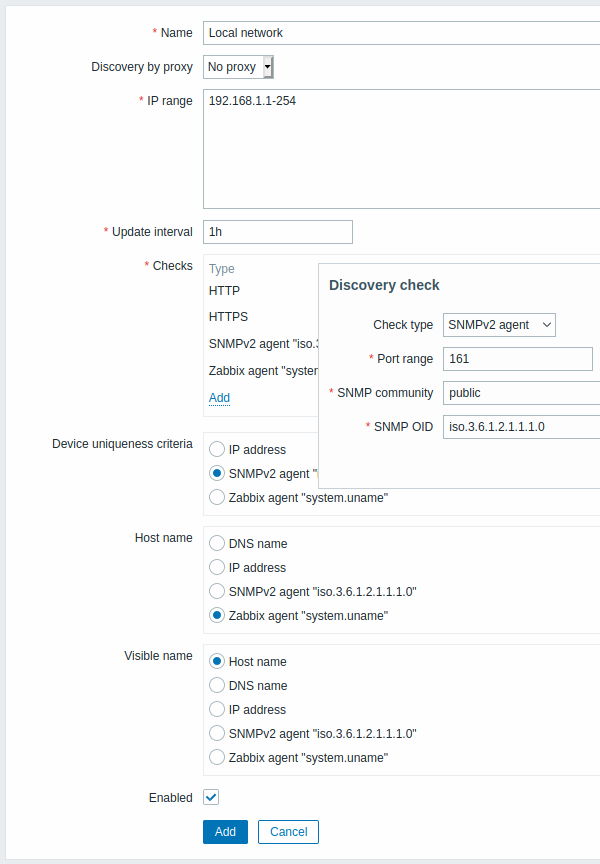

To configure a network discovery rule used by Zabbix to discover hosts and services:

  • Go to Configuration → Discovery
  • Click on Create rule (or on the rule name to edit an existing one)
  • Edit the discovery rule attributes

Rule attributes

All mandatory input fields are marked with a red asterisk.

Parameter Description
Name Unique name of the rule. For example, "Local network".
Discovery by proxy What performs discovery:
no proxy - Zabbix server is doing discovery
<proxy name> - this proxy performs discovery
IP range The range of IP addresses for discovery. It may have the following formats:
Single IP: 192.168.1.33
Range of IP addresses: 192.168.1-10.1-255. The range is limited by the total number of covered addresses (less than 64K).
IP mask: 192.168.4.0/24
supported IP masks:
/16 - /30 for IPv4 addresses
/112 - /128 for IPv6 addresses
List: 192.168.1.1-255, 192.168.2.1-100, 192.168.2.200, 192.168.4.0/24
Since Zabbix 3.0.0 this field supports spaces, tabulation and multiple lines.
Update interval This parameter defines how often Zabbix will execute the rule.
The interval is measured after the execution of previous discovery instance ends so there is no overlap.
Time suffixes are supported, e.g. 30s, 1m, 2h, 1d, since Zabbix 3.4.0.
User macros are supported, since Zabbix 3.4.0.
Note that if a user macro is used and its value is changed (e.g. 1w → 1h), the next check will be executed according to the previous value (far in the future with the example values).
Checks Zabbix will use this list of checks for discovery. Click on to configure a new check in a popup window.
Supported checks: SSH, LDAP, SMTP, FTP, HTTP, HTTPS, POP, NNTP, IMAP, TCP, Telnet, Zabbix agent, SNMPv1 agent, SNMPv2 agent, SNMPv3 agent, ICMP ping.
A protocol-based discovery uses the net.tcp.service[] functionality to test each host, except for SNMP which queries an SNMP OID. Zabbix agent is tested by querying an item in unencrypted mode. Please see agent items for more details.
The 'Ports' parameter may be one of following:
Single port: 22
Range of ports: 22-45
List: 22-45,55,60-70
Device uniqueness criteria Uniqueness criteria may be:
IP address - no processing of multiple single-IP devices. If a device with the same IP already exists it will be considered already discovered and a new host will not be added.
<discovery check> - either Zabbix agent or SNMP agent check.
Host name Set the technical host name of a created host using:
DNS name - DNS name (default)
IP address - IP address
<discovery check> - received string value of the discovery check (e.g. Zabbix agent, SNMP agent check)
See also: Host naming.
This option is supported since 4.2.0.
Visible name Set the visible host name of a created host using:
Host name - technical host name (default)
DNS name - DNS name
IP address - IP address
<discovery check> - received string value of the discovery check (e.g. Zabbix agent, SNMP agent check)
See also: Host naming.
This option is supported since 4.2.0.
Enabled With the check-box marked the rule is active and will be executed by Zabbix server.
If unmarked, the rule is not active. It won't be executed.

A real life scenario

In this example we would like to set up network discovery for the local network having an IP range of 192.168.1.1-192.168.1.254.

In our scenario we want to:

  • discover those hosts that have Zabbix agent running
  • run discovery every 10 minutes
  • add a host to monitoring if the host uptime is more than 1 hour
  • remove hosts if the host downtime is more than 24 hours
  • add Linux hosts to the "Linux servers" group
  • add Windows hosts to the "Windows servers" group
  • use Template OS Linux for Linux hosts
  • use Template OS Windows for Windows hosts
Step 1

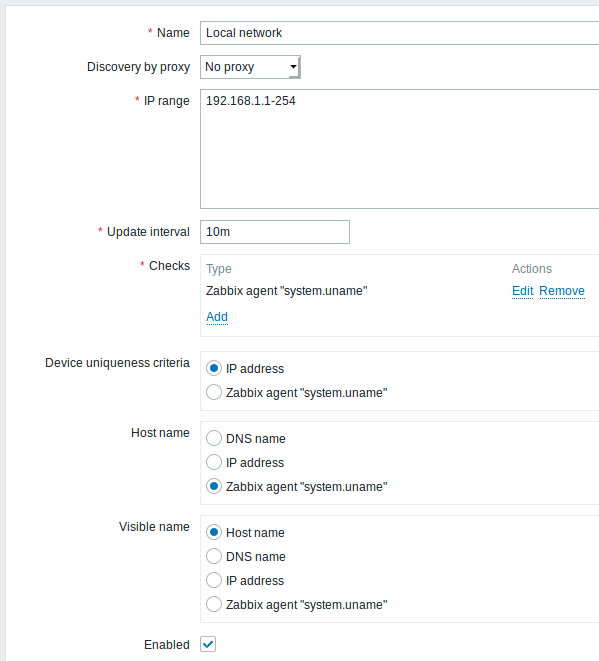

Defining a network discovery rule for our IP range.

Zabbix will try to discover hosts in the IP range of 192.168.1.1-192.168.1.254 by connecting to Zabbix agents and getting the value from the system.uname key. The value received from the agent can be used to name the hosts and also to apply different actions for different operating systems. For example, link Windows servers to Template OS Windows, Linux servers to Template OS Linux.

The rule will be executed every 10 minutes.

When this rule is added, Zabbix will automatically start the discovery and generating discovery-based events for further processing.

Step 2

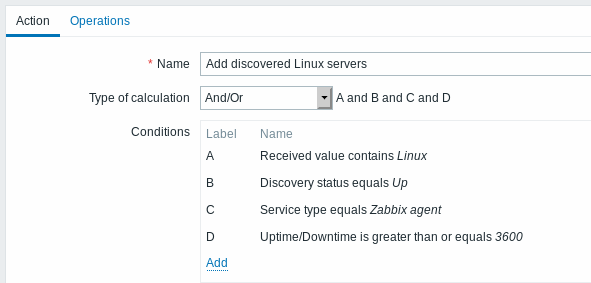

Defining a discovery action for adding the discovered Linux servers to the respective group/template.

The action will be activated if:

  • the "Zabbix agent" service is "up"
  • the value of system.uname (the Zabbix agent key we used in rule definition) contains "Linux"
  • Uptime is 1 hour (3600 seconds) or more

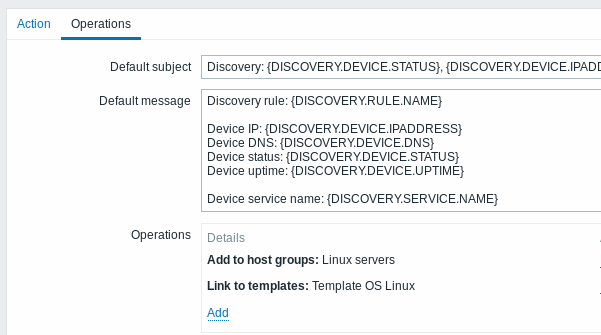

The action will execute the following operations:

  • add the discovered host to the "Linux servers" group (and also add host if it wasn't added previously)
  • link host to the "Template OS Linux" template. Zabbix will automatically start monitoring the host using items and triggers from "Template OS Linux".
Step 3

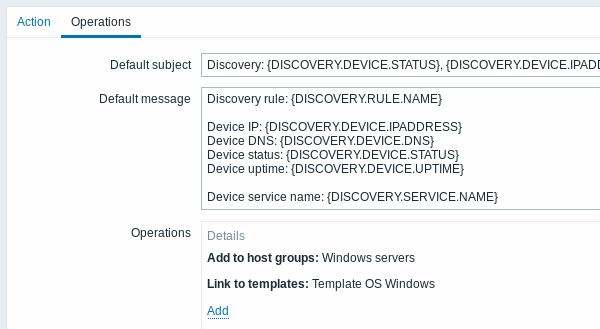

Defining a discovery action for adding the discovered Windows servers to the respective group/template.

Step 4

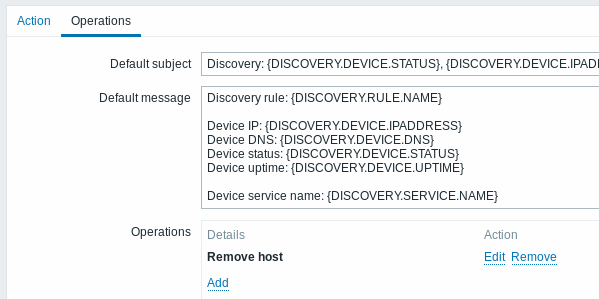

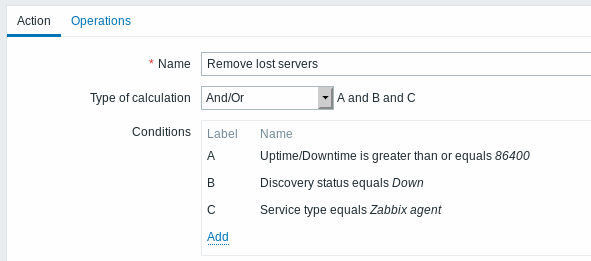

Defining a discovery action for removing lost servers.

A server will be removed if "Zabbix agent" service is 'down' for more than 24 hours (86400 seconds).
