1 Dashboard

Visão geral

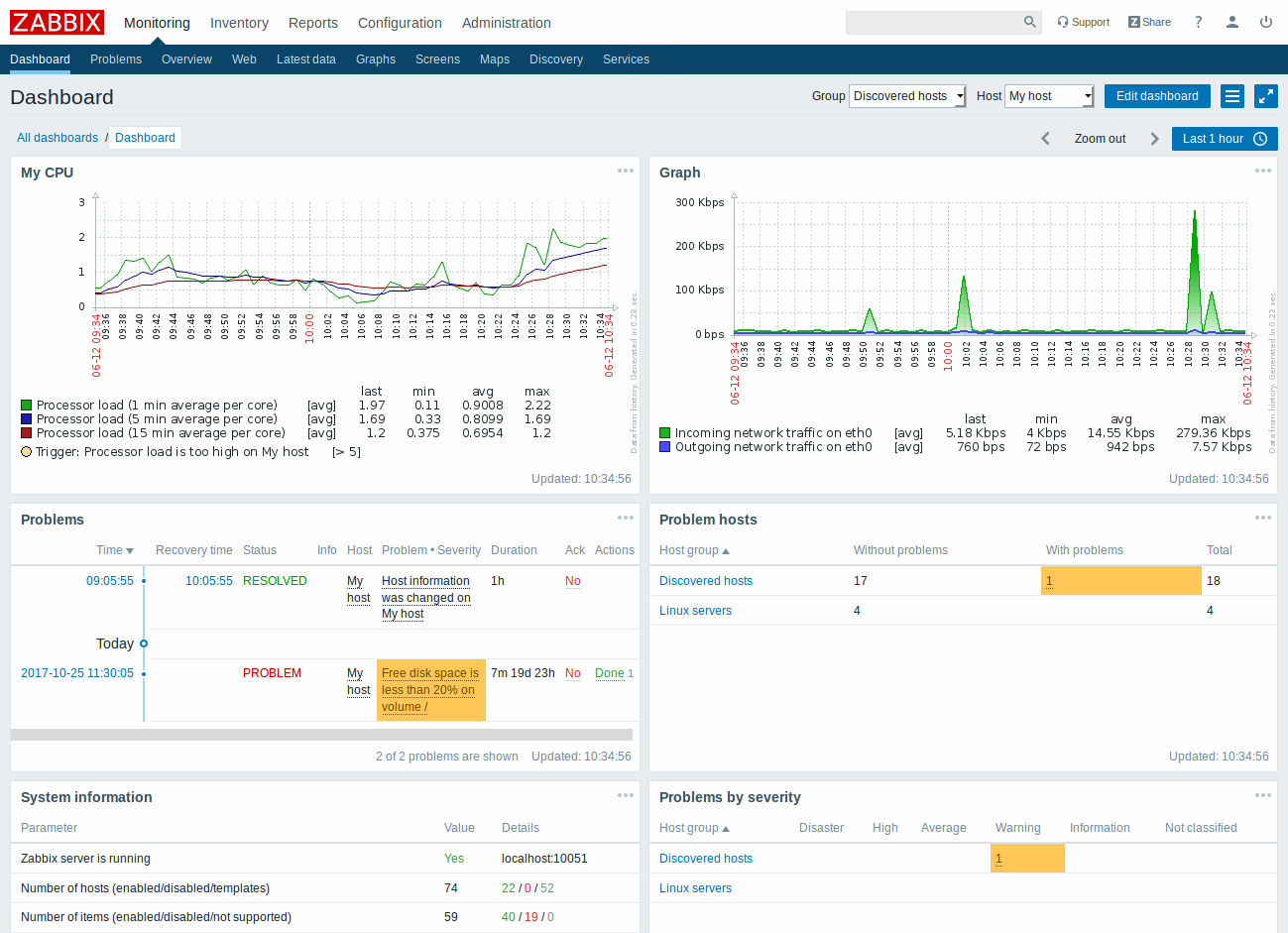

O módulo Monitoramento → Dashboard é similar a um painel de um carro, apresentando as informações mais importantes.

Os widgets do Dashboard podem ser agrupados em dois tipos: Favoritos e de Status. Os favoritos tem por função possibilitar a adição de links para acesso fácil, enquanto os de status tem por função mostrar visões agrupadas de determinado tipo de informação.

Todos eles suportam customização, podendo ser expandidos ou contraídos e ter sua posição modificada no dashboard.

Widgets de favoritos

Temos aqui alguns widgets para itens favoritos que possibilitam a criação de atalhos rápidos para os gráficos, gráficos customizados, apresentações de slides e mapas que você mais usa.

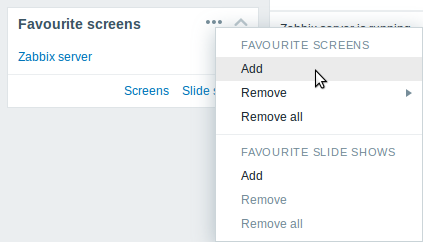

Para adicionar itens a um widget (exemplo para telas):

  • Clique no botão menu do widget (botão com reticências)
  • Selecione a opção Adicionar do menu flutuante
  • Selecione no menu pop-up a(s) tela(s) desejada(s)
  • Clique no botão Selecionar

Agora seu widget de telas favoritas tem novos atalhos para acesso fácil às suas telas.

Widgets de status

Existem vários widgets de status:

  • Status do Zabbix - Mostra uma visão agrupada do ambiente Zabbix
  • Status do sistema - Mostra uma visão agrupada dos incidentes classificados por severidade e grupo
  • Status dos hosts - Mostra uma visão agrupada dos incidentes classificados grupo e ocorrência ou não de incidentes ativos
  • Últimos 20 incidentes - Mostra os últimos 20 incidentes
  • Monitoramento Web - Resumo das monitorações web agrupado por regra e resultado (sucesso / falha)
  • Status das regras de autobusca - Resumo das regras de autobusca ativas (se não existir nenhuma regra este widget não aparece)

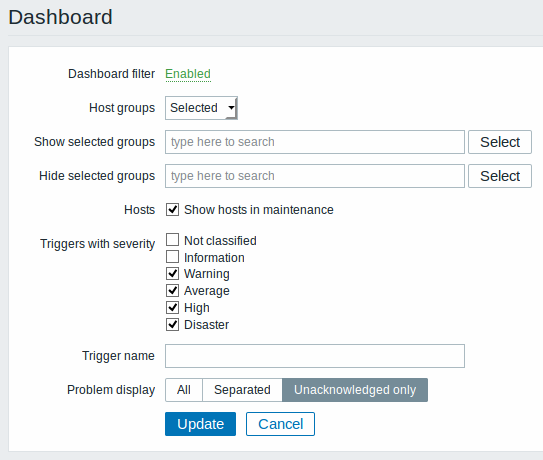

Dashboard filter

Clique no ícone na barra de título para ter acesso ao controle de filtros do dashboard.

Ao ativar o filtro você pode limitar quais hosts e triggers serão apresentadas no dashboard e definir como os incidentes serão apresentados.

Parâmetro Descrição
Filtro de dashboard Marque para ativar o filtro.
Grupos de hosts Selecione para mostrar dados de:
Todos - todos os grupos de hosts
Selecionados - apenas dos grupos selecionados.
Exibir grupos selecionados Este campo fica disponível quando o campo Grupos de hosts está com a opção Selecionados marcada.
Entre com os grupos de hosts para apresentar, este campo possui recurso de auto-completar.
Apenas os dados de grupos selecionados estarão visíveis no dashboard, se nenhum for informado todos serão exibidos.
Ocultar grupos selecionados Este campo fica disponível quando o campo Grupos de hosts está com a opção Selecionados marcada.
Entre com os grupos de hosts para NÃO EXIBIR, este campo possui recurso de auto-completar.
Os grupos de hosts selecionados aqui não estarão visíveis no dashboard. É importante salientar que a ocultação de um grupo pode afetar a exibição de hosts em outros grupos, exemplo: Se os hosts 001, 002, 003 estão no grupo A e os hosts 002, 003 também estão no grupo B. E nós selecionamos para Exibir o grupo A e Esconder o grupo B ao mesmo tempo, apenas os dados do host 001 serão apresentados no dashboard.
Hosts Selecione a opção Mostrar hosts em manutenção para apresentar dados de hosts que estão sob efeito de regras de manutenção programada no Dashboard.
Triggers com severidade Marque as severidades de triggers que você deseja exibir no dashboard.
Nome de trigger como Limite a apresentação de triggers nos widgets: Status do sistema, Status dos Hosts e Últimos 20 incidentes ao filtrar pelo nome das triggers.
Exibição de incidentes Contabilizar os incidentes pela tratativa:
Todos - Considera todos os incidentes
Separados - incidentes não reconhecidos são contabilizados em separado do total de incidentes
Somente não reconhecidos - apenas os incidentes não reconhecidos serão contabilizados.

Se o filtro Dashboard estiver ativo, o ícone de ajuste de filtro terá um indicador verde para indicar a existência do filtro ativo: .

Ao clicar em um host no widget dos Últimos 20 incidentes será apresentado o menu flutuante do host. Este menu inclui links para scripts customizados, dados recentes, triggers, inventário, gráficos e telas daquele host.

O menu de host é acessível ao clicar em um host em diversos locais:

  • Monitoramento → Visão geral (na célula do host)
  • Monitoramento → Dados recentes (ao clicar no nome do host)
  • Monitoramento → Triggers (ao clicar no nome do host)
  • Monitoramento → Eventos (ao clicar no nome do host)
  • Monitoramento → Eventos → Detalhes do evento (ao clicar no nome do host)
  • Monitoramento → Telas (nos widgets de Incidentes do Host e Incidentes do grupo de host)
  • Monitoramento → Mapas (ao clicar no ícone associado ao host)
  • Relatórios → Top 100 de triggers

Clicando no Incidente apresentado no widget dos Últimos 20 incidentes será apresentado o menu flutuante de triggers e eventos. Ele contêm a lista de eventos e, se definido, a descrição da trigger e uma URL clicável.

Adding widgets

To add widget to a dashboard:

  • Click on the Add widget button/link in dashboard editing mode
  • Select the Type of widget
  • Enter widget parameters
  • Click on Add

The following widgets can be added to a dashboard:

In dashboard editing mode widgets can be moved around the dashboard by clicking on the widget title bar and dragging it to a new location. Also, you can click on the following buttons within the widget to:

  • - edit a widget;
  • - remove a widget

Click on Save changes for the dashboard to make any changes to the widgets permanent.

Dynamic widgets

When configuring some of the widgets:

  • Graphs (simple and custom)
  • Plain text
  • URL

there is an extra option called Dynamic item. You can check this box to make the widget dynamic - i.e. capable of displaying different content based on the selected host.

Now, when saving the dashboard, you will notice that two new dropdowns have appeared atop the dashboard for selecting the host group/host:

Thus you have a widget, which can display content that is based on the data from the host that is selected in the dropdown. The benefit of this is that you do not need to create extra widgets just because, for example, you want to see the same graphs containing data from various hosts.

Viewing and editing a dashboard

When viewing a single dashboard, the following options are available:

Switch to the dashboard editing mode.
Open the action menu.
Sharing Edit sharing preferences for the dashboard. Dashboards can be made public or private.
Public dashboards are visible to all users.
Private dashboards are visible only to their owner. Private dashboards can be shared by the owner to other users and user groups.
For details on configuring sharing, see the map configuration section.
Create new Create a new dashboard.
First you are prompted to enter general properties of the new dashboard - owner and name. Then, the new dashboard opens in editing mode and you can add widgets.
Clone Create a new dashboard by copying properties of the existing one.
First you are prompted to enter general properties of the new dashboard - owner and name. Then, the new dashboard opens in editing mode with all the widgets of the original dashboard.
Delete Delete the dashboard.
Display dashboard in fullscreen mode.
Since Zabbix 4.0.1, the fullscreen mode can also be accessed with the following URL parameters:
/zabbix.php?action=dashboard.view&fullscreen=1. To exit: /zabbix.php?action=dashboard.view&fullscreen=0
Display dashboard in kiosk mode. In this mode only widgets are displayed.
The kiosk mode button appears when the fullscreen mode is activated.
To exit kiosk mode, move the mouse cursor until the exit button appears and click on it. Note that you will be taken back to normal mode (not fullscreen mode).
Since Zabbix 4.0.1, the kiosk mode can also be accessed with the following URL parameters:
/zabbix.php?action=dashboard.view&kiosk=1. To exit to normal mode: /zabbix.php?action=dashboard.view&fullscreen=0

Editing mode is opened:

  • when a new dashboard is being created
  • when you click the Edit dashboard button for an existing dashboard

In the dashboard editing mode the following options are available:

Edit general dashboard properties - name and owner.
Add a new widget.
Save dashboard changes.
Cancel dashboard changes.

Permissions to dashboards

Permissions to dashboards for regular and Zabbix Admin users are limited in the following way:

  • They can see and clone a dashboard if they have at least READ rights to it;
  • They can edit and delete dashboard only if they have READ/WRITE rights to it;
  • They cannot change the dashboard owner.

Host menu

Clicking on a host in the Problems widget brings up the host menu. It includes links to custom scripts, inventory, latest data, problems, graphs and screens for the host.

The host menu is accessible by clicking on a host in several other frontend sections:

Problem event popup

The problem event popup includes the list of problem events for this trigger and, if defined, the trigger description and a clickable URL.

To bring up the problem event popup:

  • roll a mouse over the problem name in the Problem-Severity column of the Problems widget. The popup disappears once you remove the mouse from the problem name.
  • click on the problem name in the Problem-Severity column of the Problems widget. The popup disappears only if you click on the problem name again.

Resolved values of {ITEM.VALUE} and {ITEM.LASTVALUE} macros in trigger descriptions are truncated to 20 characters. To see the entire values you may use macro functions with these macros, e.g. {{ITEM.VALUE}.regsub("(.*)", \1)}, {{ITEM.LASTVALUE}.regsub("(.*)", \1)} as a workaround.
