9 Graph (classic)

Overview

In the classic graph widget, you can display a single custom graph or simple graph.

Configuration

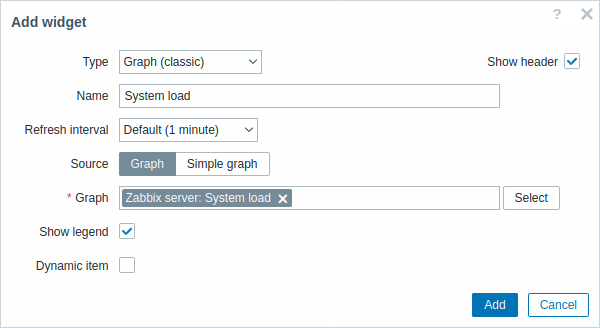

To configure, select Graph (classic) as type:

In addition to the parameters that are common for all widgets, you may set the following specific options:

Source Select graph type:
Graph - custom graph
Simple graph - simple graph
Graph Select the custom graph to display.
This option is available if 'Graph' is selected as Source.
Item Select the item to display in a simple graph.
This option is available if 'Simple graph' is selected as Source.
Show legend Unmark this checkbox to hide the legend on the graph (marked by default).
Dynamic item Set graph to display different data depending on the selected host.

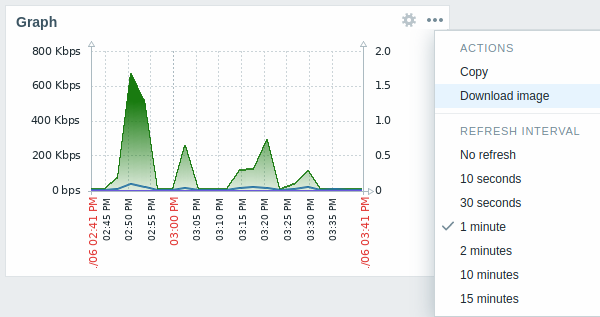

Information displayed by the classic graph widget can be downloaded as .png image using the widget menu:

A screenshot of the widget will be saved to the Downloads folder.
