3 SLA

Overview

Once the services are created, you can start monitoring whether their performance is on track with Service Level Agreement (SLA).

Services->SLA menu section allows to configure SLAs for various services. An SLA in Zabbix defines service level objective (SLO), expected uptime schedule and planned downtimes.

SLAs and services are matched by service tags. The same SLA may be applied to multiple services - performance will be measured for each matching service separately. A single service may have multiple SLAs assigned - data for each of the SLAs will be displayed separately.

In SLA reports Zabbix provides Service level indicator (SLI) data, which measures real service availability. Whether a service meets the SLA targets is determined by comparing SLO (expected availability in %) with SLI (real-life availability in %).

Configuration

To create a new SLA, click on the Create SLA button.

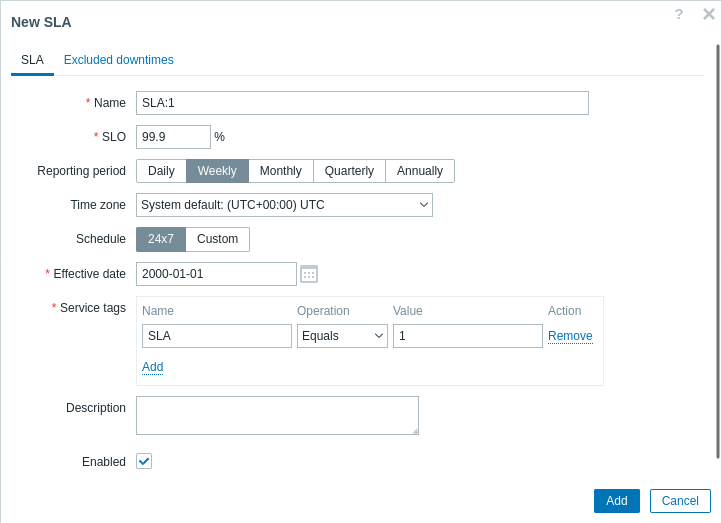

The SLA tab allows to specify general SLA parameters.

Parameter Description
Name Enter the SLA name.
SLO Enter the service level objective (SLO) as percentage.
Reporting period Selecting the period will affect what periods are used in the SLA report - daily, weekly, monthly, quarterly, or annually.
Time zone Select the SLA time zone.
Schedule Select the SLA schedule - 24x7 or custom.
Effective date Select the date of starting SLA calculation.
Service tags Add service tags to identify the services towards which this SLA should be applied.
Name - service tag name, must be exact match, case-sensitive.
Operation - select Equals if the tag value must match exactly (case-sensitive) or Contains if part of the tag value must match (case-insensitive).
Value - service tag value to search for according to selected operation.
The SLA is applied to a service, if at least one service tag matches.
Description Add a description for the SLA.
Enabled Mark the checkbox to enable the SLA calculation.

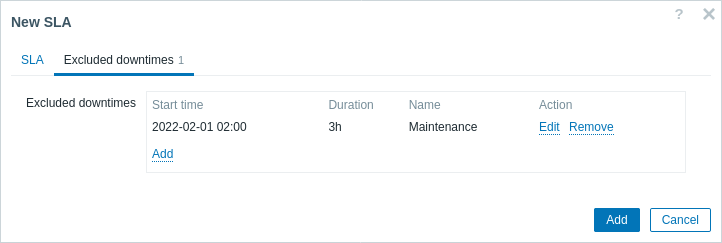

The Excluded downtimes tab allows to specify downtimes that are excluded from the SLA calculation.

Click on Add to configure excluded downtimes, then enter the period name, start date and duration.

SLA reports

How a service performs compared to an SLA is visible in the SLA report. SLA reports can be viewed:

  • from the SLA section by clicking on the SLA report hyperlink;
  • from the Services section by clicking on the SLA name in the info tab;
  • in the Dashboard widget SLA report.

Once an SLA is configured, the Info tab in the services section will also display some information about service performance.
