9 Maps


In the Configuration → Maps section users can configure and maintain network maps.

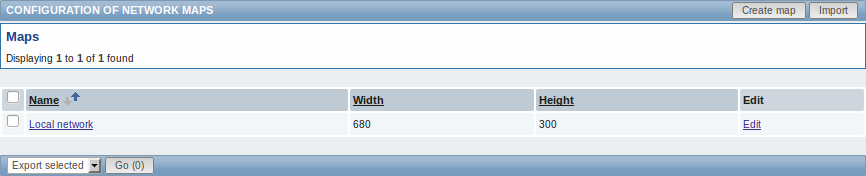

A listing of existing maps with their details is displayed.

Displayed data:

Column Description
Name Name of the map. By clicking on the map name you can access the grid for adding map elements.
Width Map width is displayed.
Height Map height is displayed.
Edit Click on the Edit link to edit general map properties.

To create a new map, click on the Create map button in the top right-hand corner. To import a map from an XML file, click on the Import button in the top right-hand corner.

Mass editing options

A dropdown below the list offers some mass-editing options:

  • Export selected - export the maps to an XML file
  • Delete selected - delete the maps

To use these options, mark the check-boxes before the respective maps, then select the required option and click on "Go".
