1 Configuring a host


To configure a host in Zabbix frontend, do the following:

  • Go to: Configuration → Hosts
  • Click on Create to the right (or on the host name to edit an existing host)
  • Enter parameters of the host in the form

You can also use the Clone and Full clone buttons in the form of an existing host to create a new host. Clicking on Clone will retain all host parameters and template linkage (keeping all entities from those templates). Full clone will additionally retain directly attached entities (applications, items, triggers, graphs and low-level discovery rules).

Note: When a new host is cloned, it will retain all template entities as they are originally on the template. Any changes to those entities made on the existing host level (such as changed item interval, modified regular expression or added prototypes to the low-level discovery rule) will not be cloned to the new host; instead they will be as on the template.

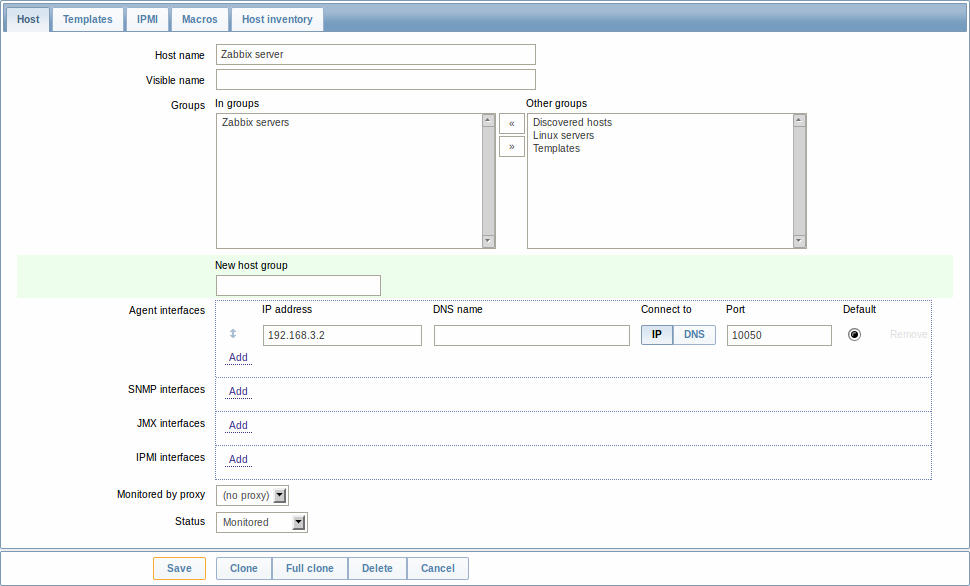

The Host tab contains general host attributes:

Parameter Description
Host name Enter a unique host name. Alphanumerics, spaces, dots, dashes and underscores are allowed.
Note: With Zabbix agent running on the host you are configuring, the agent configuration file parameter Hostname must have the same value as the host name entered here. The name in the parameter is needed in the processing of active checks.
Visible name If you set this name, it will be the one visible in lists, maps, etc. This attribute has UTF-8 support.
Groups Select host groups the host belongs to. A host must belong to at least one host group.
New host group A new group can be created and linked to the host. Ignored, if empty.
Interfaces Several host interface types are supported for a host: Agent, SNMP, JMX and IPMI.
To add a new interface, click on Add in the Interfaces block and enter IP/DNS, Connect to and Port info.
Note: Interfaces that are used in any items cannot be removed and link Remove is greyed out for them.
IP address Host IP address (optional).
DNS name Host DNS name (optional).
Connect to Clicking the respective button will tell Zabbix server what to use to retrieve data from agents:
IP - Connect to the host IP address (recommended)
DNS - Connect to the host DNS name
Port TCP/UDP port number. Default values are: 10050 for Zabbix agent, 161 for SNMP agent, 12345 for JMX and 623 for IPMI.
Default Check the radio button to set the default interface.
Monitored by proxy The host can be monitored either by Zabbix server or one of Zabbix proxies:
(no proxy) - host is monitored by Zabbix server
Proxy name - host is monitored by Zabbix proxy "Proxy name"
Status Host status:
Monitored - Host is active, ready to be monitored
Not monitored - Host is not active, thus not monitored

The Templates tab allows you to link templates to the host. All entities (items, triggers, graphs and applications) will be inherited from the template.

To link a new template, click on Add. To unlink a template, use one of the two options:

  • Unlink - unlink the template, but preserve its items, triggers and graphs
  • Unlink and clear - unlink the template and remove all its items, triggers and graphs

The IPMI tab contains IPMI management attributes.

Parameter Description
Authentication algorithm Select the authentication algorithm.
Privilege level Select the privilege level.
Username User name for authentication.
Password Password for authentication.

The Macros tab allows you to define host-level user macros.

The Host inventory tab allows you to manually enter inventory information for the host. You can also select to enable Automatic inventory population, or disable inventory population for this host.

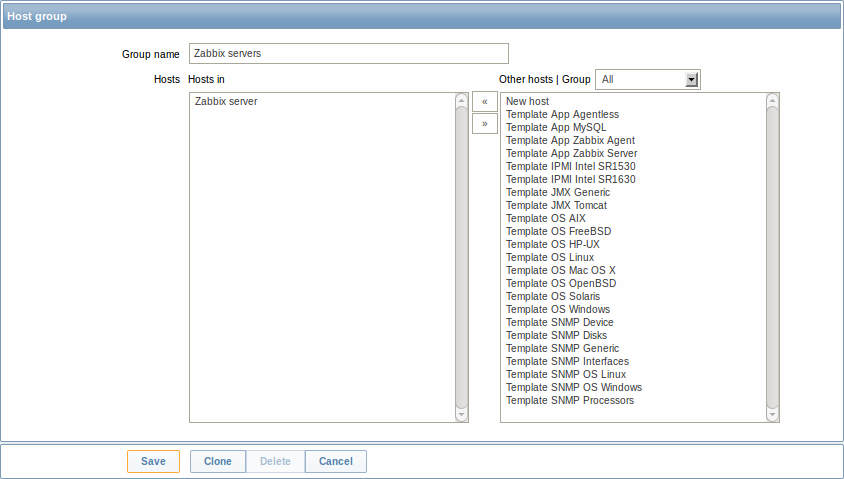

Configuring a host group

To configure a host group in Zabbix frontend, do the following:

  • Go to: Configuration → Host groups
  • Click on Create Group in the upper right corner of the screen
  • Enter parameters of the group in the form

Parameter Description
Group name Enter a unique host group name. The name must be unique within a Zabbix node.
Hosts Select hosts, members of the group. A host group may have zero, one or more hosts.
