3 Templates

Overview

Templates are exported with many related objects and object relations.

Template export contains:

  • Linked template groups
  • Linked host groups (if used in host prototype configuration)
  • Template data
  • Linkage to other templates
  • Linkage to template groups
  • Directly linked items
  • Directly linked triggers
  • Directly linked graphs
  • Directly linked dashboards
  • Directly linked discovery rules with all prototypes
  • Directly linked web scenarios
  • Value maps

Exporting

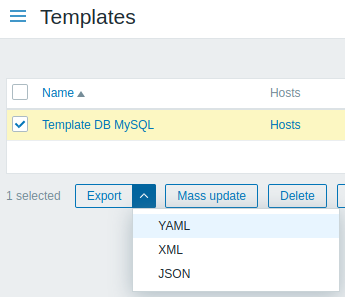

To export templates, do the following:

  1. Go to Data collectionTemplates.
  2. Mark the checkboxes of the templates to export.
  3. Click on Export below the list.

Depending on the selected format, templates are exported to a local file with a default name:

  • zabbix_export_templates.yaml - in YAML export (default option for export);
  • zabbix_export_templates.xml - in XML export;
  • zabbix_export_templates.json - in JSON export.

Importing

To import templates, do the following:

  1. Go to: Data collectionTemplates.
  2. Click on Import to the right.
  3. Select the import file.
  4. Click on Import.

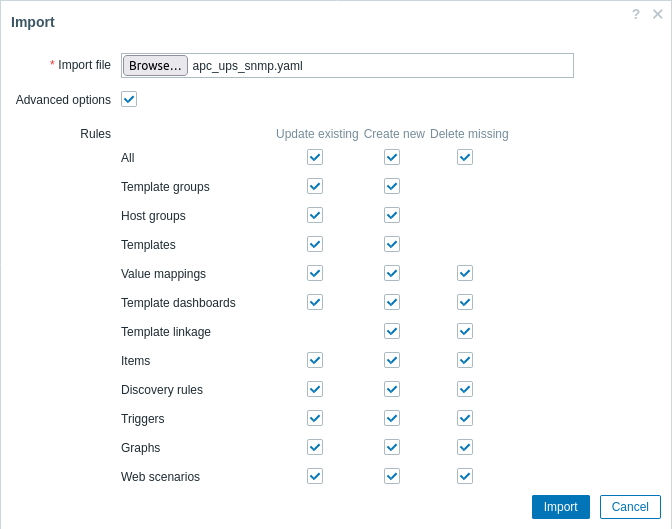

If you mark the Advanced options checkbox, a detailed list of all importable elements will be displayed - mark or unmark each import rule as required.

If you click the checkbox in the All row, all elements below it become marked/unmarked.

Import rules:

Rule Description
Update existing Existing elements will be updated with data taken from the import file. Otherwise, they will not be updated.
Create new The import will add new elements using data from the import file. Otherwise, it will not add them.
Delete missing The import will remove existing elements not present in the import file. Otherwise, it will not remove them.
If Delete missing is marked for Template linkage, current template linkage not present in the import file will be unlinked. Entities (items, triggers, graphs, etc.) inherited from the unlinked templates will not be removed (unless the Delete missing option is selected for each entity as well).

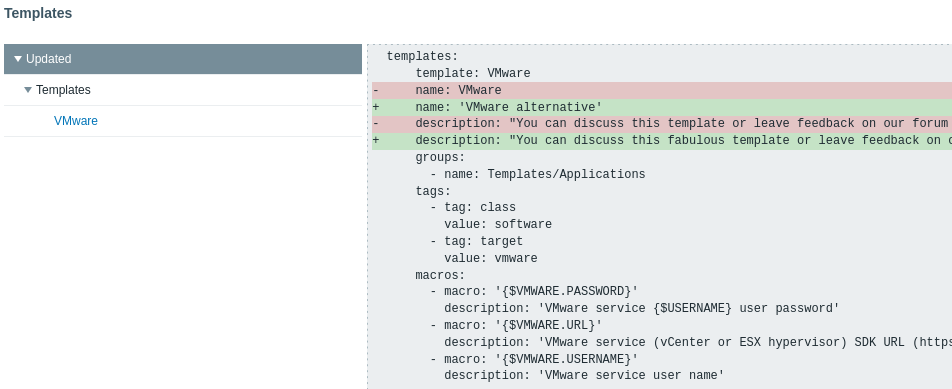

On the next screen, you will be able to view the content of a template being imported. If this is a new template all elements will be listed in green. If updating an existing template, new template elements are highlighted in green; removed template elements are highlighted in red; elements that have not changed are listed on a gray background.

The menu on the left can be used to navigate through the list of changes. Section Updated highlights all changes made to existing template elements. Section Added lists new template elements. The elements in each section are grouped by element type; press on the gray arrow down to expand or collapse the group of elements.

Review template changes, then press Import to perform template import. A success or failure message of the import will be displayed in the frontend.

Export format

Export format in YAML:

zabbix_export:
         version: '6.4'
         template_groups:
           - uuid: a571c0d144b14fd4a87a9d9b2aa9fcd6
             name: Templates/Applications
         templates:
           - uuid: 56079badd056419383cc26e6a4fcc7e0
             template: VMware
             name: VMware
             description: |
               You can discuss this template or leave feedback on our forum https://www.zabbix.com/forum/zabbix-suggestions-and-feedback/

               Template tooling version used: 0.38
             vendor:
               name: Zabbix
               version: 6.4-0
             templates:
               - name: 'VMware macros'
             groups:
               - name: Templates/Applications
             items:
               - uuid: 5ce209f4d94f460488a74a92a52d92b1
                 name: 'VMware: Event log'
                 type: SIMPLE
                 key: 'vmware.eventlog[{$VMWARE.URL},skip]'
                 history: 7d
                 trends: '0'
                 value_type: LOG
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'Collect VMware event log. See also: https://www.zabbix.com/documentation/6.2/manual/config/items/preprocessing/examples#filtering_vmware_event_log_records'
                 tags:
                   - tag: Application
                     value: VMware
               - uuid: ee2edadb8ce943ef81d25dbbba8667a4
                 name: 'VMware: Full name'
                 type: SIMPLE
                 key: 'vmware.fullname[{$VMWARE.URL}]'
                 delay: 1h
                 history: 7d
                 trends: '0'
                 value_type: CHAR
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'VMware service full name.'
                 preprocessing:
                   - type: DISCARD_UNCHANGED_HEARTBEAT
                     parameters:
                       - 1d
                 tags:
                   - tag: Application
                     value: VMware
               - uuid: a0ec9145f2234fbea79a28c57ebdb44d
                 name: 'VMware: Version'
                 type: SIMPLE
                 key: 'vmware.version[{$VMWARE.URL}]'
                 delay: 1h
                 history: 7d
                 trends: '0'
                 value_type: CHAR
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'VMware service version.'
                 preprocessing:
                   - type: DISCARD_UNCHANGED_HEARTBEAT
                     parameters:
                       - 1d
                 tags:
                   - tag: Application
                     value: VMware
             discovery_rules:
               - uuid: 16ffc933cce74cf28a6edf306aa99782
                 name: 'Discover VMware clusters'
                 type: SIMPLE
                 key: 'vmware.cluster.discovery[{$VMWARE.URL}]'
                 delay: 1h
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'Discovery of clusters'
                 item_prototypes:
                   - uuid: 46111f91dd564a459dbc1d396e2e6c76
                     name: 'VMware: Status of "{#CLUSTER.NAME}" cluster'
                     type: SIMPLE
                     key: 'vmware.cluster.status[{$VMWARE.URL},{#CLUSTER.NAME}]'
                     history: 7d
                     username: '{$VMWARE.USERNAME}'
                     password: '{$VMWARE.PASSWORD}'
                     description: 'VMware cluster status.'
                     valuemap:
                       name: 'VMware status'
                     tags:
                       - tag: Application
                         value: VMware
               - uuid: 8fb6a45cbe074b0cb6df53758e2c6623
                 name: 'Discover VMware datastores'
                 type: SIMPLE
                 key: 'vmware.datastore.discovery[{$VMWARE.URL}]'
                 delay: 1h
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 item_prototypes:
                   - uuid: 4b61838ba4c34e709b25081ae5b059b5
                     name: 'VMware: Average read latency of the datastore {#DATASTORE}'
                     type: SIMPLE
                     key: 'vmware.datastore.read[{$VMWARE.URL},{#DATASTORE},latency]'
                     history: 7d
                     username: '{$VMWARE.USERNAME}'
                     password: '{$VMWARE.PASSWORD}'
                     description: 'Amount of time for a read operation from the datastore (milliseconds).'
                     tags:
                       - tag: Application
                         value: VMware
                   - uuid: 5355c401dc244bc588ccd18767577c93
                     name: 'VMware: Free space on datastore {#DATASTORE} (percentage)'
                     type: SIMPLE
                     key: 'vmware.datastore.size[{$VMWARE.URL},{#DATASTORE},pfree]'
                     delay: 5m
                     history: 7d
                     value_type: FLOAT
                     units: '%'
                     username: '{$VMWARE.USERNAME}'
                     password: '{$VMWARE.PASSWORD}'
                     description: 'VMware datastore space in percentage from total.'
                     tags:
                       - tag: Application
                         value: VMware
                   - uuid: 84f13c4fde2d4a17baaf0c8c1eb4f2c0
                     name: 'VMware: Total size of datastore {#DATASTORE}'
                     type: SIMPLE
                     key: 'vmware.datastore.size[{$VMWARE.URL},{#DATASTORE}]'
                     delay: 5m
                     history: 7d
                     units: B
                     username: '{$VMWARE.USERNAME}'
                     password: '{$VMWARE.PASSWORD}'
                     description: 'VMware datastore space in bytes.'
                     tags:
                       - tag: Application
                         value: VMware
                   - uuid: 540cd0fbc56c4b8ea19f2ff5839ce00d
                     name: 'VMware: Average write latency of the datastore {#DATASTORE}'
                     type: SIMPLE
                     key: 'vmware.datastore.write[{$VMWARE.URL},{#DATASTORE},latency]'
                     history: 7d
                     username: '{$VMWARE.USERNAME}'
                     password: '{$VMWARE.PASSWORD}'
                     description: 'Amount of time for a write operation to the datastore (milliseconds).'
                     tags:
                       - tag: Application
                         value: VMware
               - uuid: a5bc075e89f248e7b411d8f960897a08
                 name: 'Discover VMware hypervisors'
                 type: SIMPLE
                 key: 'vmware.hv.discovery[{$VMWARE.URL}]'
                 delay: 1h
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'Discovery of hypervisors.'
                 host_prototypes:
                   - uuid: 051a1469d4d045cbbf818fcc843a352e
                     host: '{#HV.UUID}'
                     name: '{#HV.NAME}'
                     group_links:
                       -   group:
                           name: Templates/Applications
                     group_prototypes:
                       - name: '{#CLUSTER.NAME}'
                       - name: '{#DATACENTER.NAME}'
                     templates:
                       - name: 'VMware Hypervisor'
                     macros:
                       - macro: '{$VMWARE.HV.UUID}'
                         value: '{#HV.UUID}'
                         description: 'UUID of hypervisor.'
                     custom_interfaces: 'YES'
                     interfaces:
                       - ip: '{#HV.IP}'
               - uuid: 9fd559f4e88c4677a1b874634dd686f5
                 name: 'Discover VMware VMs'
                 type: SIMPLE
                 key: 'vmware.vm.discovery[{$VMWARE.URL}]'
                 delay: 1h
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'Discovery of guest virtual machines.'
                 host_prototypes:
                   - uuid: 23b9ae9d6f33414880db1cb107115810
                     host: '{#VM.UUID}'
                     name: '{#VM.NAME}'
                     group_links:
                       -   group:
                           name: Templates/Applications
                     group_prototypes:
                       - name: '{#CLUSTER.NAME} (vm)'
                       - name: '{#DATACENTER.NAME}/{#VM.FOLDER} (vm)'
                       - name: '{#HV.NAME}'
                     templates:
                       - name: 'VMware Guest'
                     macros:
                       - macro: '{$VMWARE.VM.UUID}'
                         value: '{#VM.UUID}'
                         description: 'UUID of guest virtual machine.'
                     custom_interfaces: 'YES'
                     interfaces:
                       - ip: '{#VM.IP}'
             valuemaps:
               - uuid: 3c59c22905054d42ac4ee8b72fe5f270
                 name: 'VMware status'
                 mappings:
                   - value: '0'
                     newvalue: gray
                   - value: '1'
                     newvalue: green
                   - value: '2'
                     newvalue: yellow
                   - value: '3'
                     newvalue: red

Element tags

Element tag values are explained in the table below.

Template tags
Element Element property Required Type Range Description
template_groups x Root element for template groups.
uuid x string Unique identifier for this template group.
name x string Template group name.
host_groups x Root element for host groups that are used by host prototypes.
uuid x string Unique identifier for this host group.
name x string Host group name.
templates - Root element for templates.
uuid x string Unique identifier for this template.
template x string Unique template name.
name - string Visible template name.
description - text Template description.
vendor - Root element for template vendor.

Element added only if the exported template contains vendor data.
name - string Template vendor name.
version - string Template version.

For out-of-the-box templates, version is displayed as follows: major version of Zabbix, delimiter ("-"), revision number (increased with each new version of the template, and reset with each major version of Zabbix). For example, 6.4-0, 6.4-3, 7.0-0, 7.0-3.
templates - Root element for linked templates.
name x string Template name.
groups - Root element for template groups.
name x string Template group name.
tags - Root element for template tags.
tag x string Tag name.
value - string Tag value.
macros - Root element for template user macros.
macro x string User macro name.
type - string 0 - TEXT (default)
1 - SECRET_TEXT
2 - VAULT
Type of the macro.
value - string User macro value.
description - string User macro description.
valuemaps - Root element for template value maps.
uuid x string Unique identifier for this value map.
name x string Value map name.
mapping - Root element for mappings.
value x string Value of a mapping.
newvalue x string New value of a mapping.
Template item tags
Element Element property Required Type Range1 Description
items - Root element for items.
uuid x string Unique identifier for the item.
name x string Item name.
type - string 0 - ZABBIX_PASSIVE (default)
2 - TRAP
3 - SIMPLE
5 - INTERNAL
7 - ZABBIX_ACTIVE
10 - EXTERNAL
11 - ODBC
12 - IPMI
13 - SSH
14 - TELNET
15 - CALCULATED
16 - JMX
17 - SNMP_TRAP
18 - DEPENDENT
19 - HTTP_AGENT
20 - SNMP_AGENT
21 - ITEM_TYPE_SCRIPT
Item type.
snmp_oid - string SNMP object ID.

Required by SNMP items.
key x string Item key.
delay - string Default: 1m Update interval of the item.

Accepts seconds or a time unit with suffix (30s, 1m, 2h, 1d).
Optionally one or more custom intervals can be specified either as flexible intervals or scheduling.
Multiple intervals are separated by a semicolon.
User macros may be used. A single macro has to fill the whole field. Multiple macros in a field or macros mixed with text are not supported.
Flexible intervals may be written as two macros separated by a forward slash (e.g. {$FLEX_INTERVAL}/{$FLEX_PERIOD}).
history - string Default: 90d Time period of how long the history data should be stored. A time period using the time suffix, a user macro or LLD macro.
trends - string Default: 365d Time period of how long the trends data should be stored. A time period using the time suffix, a user macro or LLD macro.
status - string 0 - ENABLED (default)
1 - DISABLED
Item status.
value_type - string 0 - FLOAT
1 - CHAR
2 - LOG
3 - UNSIGNED (default)
4 - TEXT
Received value type.
allowed_hosts - string List of IP addresses (comma delimited) of hosts allowed sending data for the item.

Used by trapper and HTTP agent items.
units - string Units of returned values (bps, B, etc).
params - text Additional parameters depending on the type of the item:
- executed script for Script, SSH and Telnet items;
- SQL query for database monitor items;
- formula for calculated items.
ipmi_sensor - string IPMI sensor.

Used only by IPMI items.
authtype - string Authentication type for SSH agent items:
0 - PASSWORD (default)
1 - PUBLIC_KEY

Authentication type for HTTP agent items:
0 - NONE (default)
1 - BASIC
2 - NTLM
Authentication type.

Used only by SSH and HTTP agent items.
username - string Username for authentication.
Used by simple check, SSH, Telnet, database monitor, JMX and HTTP agent items.

Required by SSH and Telnet items.
When used by JMX agent, password should also be specified together with the username or both properties should be left blank.
password - string Password for authentication.
Used by simple check, SSH, Telnet, database monitor, JMX and HTTP agent items.

When used by JMX agent, username should also be specified together with the password or both properties should be left blank.
publickey - string Name of the public key file.

Required for SSH agent items.
privatekey - string Name of the private key file.

Required for SSH agent items.
port - string Custom port monitored by the item.
Can contain user macros.

Used only by SNMP items.
description - text Item description.
inventory_link - string 0 - NONE

Capitalized host inventory field name. For example:
4 - ALIAS
6 - OS_FULL
14 - HARDWARE
etc.
Host inventory field that is populated by the item.

Refer to the host inventory page for a list of supported host inventory fields and their IDs.
logtimefmt - string Format of the time in log entries.
Used only by log items.
jmx_endpoint - string JMX endpoint.

Used only by JMX agent items.
url - string URL string.

Required only for HTTP agent items.
allow_traps - string 0 - NO (default)
1 - YES
Allow to populate value as in a trapper item.

Used only by HTTP agent items.
follow_redirects - string 0 - NO
1 - YES (default)
Follow HTTP response redirects while polling data.

Used only by HTTP agent items.
headers - Root element for HTTP(S) request headers, where header name is used as key and header value as value.
Used only by HTTP agent items.
name x string Header name.
value x string Header value.
http_proxy - string HTTP(S) proxy connection string.

Used only by HTTP agent items.
output_format - string 0 - RAW (default)
1 - JSON
How to process response.

Used only by HTTP agent items.
post_type - string 0 - RAW (default)
2 - JSON
3 - XML
Type of post data body.

Used only by HTTP agent items.
posts - string HTTP(S) request body data.

Used only by HTTP agent items.
query_fields - Root element for query parameters.

Used only by HTTP agent items.
name x string Parameter name.
value - string Parameter value.
request_method - string 0 - GET (default)
1 - POST
2 - PUT
3 - HEAD
Request method.

Used only by HTTP agent items.
retrieve_mode - string 0 - BODY (default)
1 - HEADERS
2 - BOTH
What part of response should be stored.

Used only by HTTP agent items.
ssl_cert_file - string Public SSL Key file path.

Used only by HTTP agent items.
ssl_key_file - string Private SSL Key file path.

Used only by HTTP agent items.
ssl_key_password - string Password for SSL Key file.

Used only by HTTP agent items.
status_codes - string Ranges of required HTTP status codes separated by commas. Supports user macros.
Example: 200,200-{$M},{$M},200-400

Used only by HTTP agent items.
timeout - string Item data polling request timeout. Supports user macros.

Used by HTTP agent and Script items.
verify_host - string 0 - NO (default)
1 - YES
Whether to validate that the host name for the connection matches the one in the host's certificate.

Used only by HTTP agent items.
verify_peer - string 0 - NO (default)
1 - YES
Whether to validate that the host's certificate is authentic.

Used only by HTTP agent items.
parameters - Root element for user-defined parameters.

Used only by Script items.
name x string Parameter name.

Used only by Script items.
value - string Parameter value.

Used only by Script items.
value map - Value map.
name x string Name of the value map to use for the item.
preprocessing - Root element for item value preprocessing.
step - Individual item value preprocessing step.
type x string 1 - MULTIPLIER
2 - RTRIM
3 - LTRIM
4 - TRIM
5 - REGEX
6 - BOOL_TO_DECIMAL
7 - OCTAL_TO_DECIMAL
8 - HEX_TO_DECIMAL
9 - SIMPLE_CHANGE (calculated as (received value-previous value))
10 - CHANGE_PER_SECOND (calculated as (received value-previous value)/(time now-time of last check))
11 - XMLPATH
12 - JSONPATH
13 - IN_RANGE
14 - MATCHES_REGEX
15 - NOT_MATCHES_REGEX
16 - CHECK_JSON_ERROR
17 - CHECK_XML_ERROR
18 - CHECK_REGEX_ERROR
19 - DISCARD_UNCHANGED
20 - DISCARD_UNCHANGED_HEARTBEAT
21 - JAVASCRIPT
22 - PROMETHEUS_PATTERN
23 - PROMETHEUS_TO_JSON
24 - CSV_TO_JSON
25 - STR_REPLACE
26 - CHECK_NOT_SUPPORTED
Type of the item value preprocessing step.
parameters - Root element for parameters of the item value preprocessing step.
parameter x string Individual parameter of the item value preprocessing step.
error_handler - string 0 - ORIGINAL_ERROR (default)
1 - DISCARD_VALUE
2 - CUSTOM_VALUE
3 - CUSTOM_ERROR
Action type used in case of preprocessing step failure.
error_handler_params - string Error handler parameters used with 'error_handler'.
master_item - Individual item master item.

Required by dependent items.
key x string Dependent item master item key value.

Recursion up to 3 dependent items and maximum count of dependent items equal to 29999 are allowed.
triggers - Root element for simple triggers.
For trigger element tag values, see template trigger tags.
tags - Root element for item tags.
tag x string Tag name.
value - string Tag value.
Template low-level discovery rule tags
Element Element property Required Type Range Description
discovery_rules - Root element for low-level discovery rules.
For most of the element tag values, see element tag values for a regular item. Only the tags that are specific to low-level discovery rules, are described below.
type - string 0 - ZABBIX_PASSIVE (default)
2 - TRAP
3 - SIMPLE
5 - INTERNAL
7 - ZABBIX_ACTIVE
10 - EXTERNAL
11 - ODBC
12 - IPMI
13 - SSH
14 - TELNET
16 - JMX
18 - DEPENDENT
19 - HTTP_AGENT
20 - SNMP_AGENT
Item type.
lifetime - string Default: 30d Time period after which items that are no longer discovered will be deleted. Seconds, time unit with suffix or user macro.
filter Individual filter.
evaltype - string 0 - AND_OR (default)
1 - AND
2 - OR
3 - FORMULA
Logic to use for checking low-level discovery rule filter conditions.
formula - string Custom calculation formula for filter conditions.
conditions - Root element for filter conditions.
macro x string Low-level discovery macro name.
value - string Filter value: regular expression or global regular expression.
operator - string 8 - MATCHES_REGEX (default)
9 - NOT_MATCHES_REGEX
Condition operator.
formulaid x character Arbitrary unique ID that is used to reference a condition from the custom expression. Can only contain capital-case letters. The ID must be defined by the user when modifying filter conditions, but will be generated anew when requesting them afterward.
lld_macro_paths - Root element for LLD macro paths.
lld_macro x string Low-level discovery macro name.
path x string Selector for value which will be assigned to the corresponding macro.
preprocessing - LLD rule value preprocessing.
step - Individual LLD rule value preprocessing step.
For most of the element tag values, see element tag values for a template item value preprocessing. Only the tags that are specific to template low-level discovery value preprocessing, are described below.
type x string 5 - REGEX
11 - XMLPATH
12 - JSONPATH
15 - NOT_MATCHES_REGEX
16 - CHECK_JSON_ERROR
17 - CHECK_XML_ERROR
20 - DISCARD_UNCHANGED_HEARTBEAT
21 - JAVASCRIPT
23 - PROMETHEUS_TO_JSON
24 - CSV_TO_JSON
25 - STR_REPLACE
Type of the item value preprocessing step.
trigger_prototypes - Root element for trigger prototypes.
For trigger prototype element tag values, see regular template trigger tags.
graph_prototypes - Root element for graph prototypes.
For graph prototype element tag values, see regular template graph tags.
host_prototypes - Root element for host prototypes.
For host prototype element tag values, see regular host tags.
item_prototypes - Root element for item prototypes.
For item prototype element tag values, see regular template item tags.
master_item - Individual item prototype master item/item prototype data.
key x string Dependent item prototype master item/item prototype key value.

Required for a dependent item.
Template trigger tags
Element Element property Required Type Range1 Description
triggers - Root element for triggers.
uuid x string Unique identifier for this trigger.
expression x string Trigger expression.
recovery_mode - string 0 - EXPRESSION (default)
1 - RECOVERY_EXPRESSION
2 - NONE
Basis for generating OK events.
recovery_expression - string Trigger recovery expression.
correlation_mode - string 0 - DISABLED (default)
1 - TAG_VALUE
Correlation mode (no event correlation or event correlation by tag).
correlation_tag - string The tag name to be used for event correlation.
name x string Trigger name.
event_name - string Event name.
opdata - string Operational data.
url_name - string Label for the URL associated with the trigger.
url - string URL associated with the trigger.
status - string 0 - ENABLED (default)
1 - DISABLED
Trigger status.
priority - string 0 - NOT_CLASSIFIED (default)
1 - INFO
2 - WARNING
3 - AVERAGE
4 - HIGH
5 - DISASTER
Trigger severity.
description - text Trigger description.
type - string 0 - SINGLE (default)
1 - MULTIPLE
Event generation type (single problem event or multiple problem events).
manual_close - string 0 - NO (default)
1 - YES
Manual closing of problem events.
dependencies - Root element for dependencies.
name x string Dependency trigger name.
expression x string Dependency trigger expression.
recovery_expression - string Dependency trigger recovery expression.
tags - Root element for trigger tags.
tag x string Tag name.
value - string Tag value.
Template graph tags
Element Element property Required Type Range1 Description
graphs - Root element for graphs.
uuid x string Unique identifier for this graph.
name x string Graph name.
width - integer 20-65535 (default: 900) Graph width, in pixels. Used for preview and for pie/exploded graphs.
height - integer 20-65535 (default: 200) Graph height, in pixels. Used for preview and for pie/exploded graphs.
yaxismin - double Default: 0 Value of Y axis minimum.

Used if 'ymin_type_1' is FIXED.
yaxismax - double Default: 0 Value of Y axis maximum.

Used if 'ymax_type_1' is FIXED.
show_work_period - string 0 - NO
1 - YES (default)
Highlight non-working hours.

Used by normal and stacked graphs.
show_triggers - string 0 - NO
1 - YES (default)
Display simple trigger values as a line.

Used by normal and stacked graphs.
type - string 0 - NORMAL (default)
1 - STACKED
2 - PIE
3 - EXPLODED
Graph type.
show_legend - string 0 - NO
1 - YES (default)
Display graph legend.
show_3d - string 0 - NO (default)
1 - YES
Enable 3D style.

Used by pie and exploded pie graphs.
percent_left - double Default:0 Show the percentile line for left axis.

Used only for normal graphs.
percent_right - double Default:0 Show the percentile line for right axis.

Used only for normal graphs.
ymin_type_1 - string 0 - CALCULATED (default)
1 - FIXED
2 - ITEM
Minimum value of Y axis.

Used by normal and stacked graphs.
ymax_type_1 - string 0 - CALCULATED (default)
1 - FIXED
2 - ITEM
Maximum value of Y axis.

Used by normal and stacked graphs.
ymin_item_1 - Individual item details.

Required if 'ymin_type_1' is ITEM.
host x string Item host.
key x string Item key.
ymax_item_1 - Individual item details.

Required if 'ymax_type_1' is ITEM.
host x string Item host.
key x string Item key.
graph_items x Root element for graph items.
sortorder - integer Draw order. The smaller value is drawn first. Can be used to draw lines or regions behind (or in front of) another.
drawtype - string 0 - SINGLE_LINE (default)
1 - FILLED_REGION
2 - BOLD_LINE
3 - DOTTED_LINE
4 - DASHED_LINE
5 - GRADIENT_LINE
Draw style of the graph item.

Used only by normal graphs.
color - string Element color (6 symbols, hex).
yaxisside - string 0 - LEFT (default)
1 - RIGHT
Side of the graph where the graph item's Y scale will be drawn.

Used by normal and stacked graphs.
calc_fnc - string 1 - MIN
2 - AVG (default)
4 - MAX
7 - ALL (minimum, average and maximum; used only by simple graphs)
9 - LAST (used only by pie and exploded pie graphs)
Data to draw if more than one value exists for an item.
type - string 0 - SIMPLE (default)
2 - GRAPH_SUM (value of the item represents the whole pie; used only by pie and exploded pie graphs)
Graph item type.
item x Individual item.
host x string Item host.
key x string Item key.
Template web scenario tags
Element Element property Required Type Range1 Description
httptests - Root element for web scenarios.
uuid x string Unique identifier for this web scenario.
name x string Web scenario name.
delay - string Default: 1m Frequency of executing the web scenario. Seconds, time unit with suffix or user macro.
attempts - integer 1-10 (default: 1) The number of attempts for executing web scenario steps.
agent - string Default: Zabbix Client agent. Zabbix will pretend to be the selected browser. This is useful when a website returns different content for different browsers.
http_proxy - string Specify an HTTP proxy to use, using the format: http://[username[:password]@]proxy.example.com[:port]
variables - Root element for scenario-level variables (macros) that may be used in scenario steps.
name x string Variable name.
value x text Variable value.
headers - Root element for HTTP headers that will be sent when performing a request. Headers should be listed using the same syntax as they would appear in the HTTP protocol.
name x string Header name.
value x text Header value.
status - string 0 - ENABLED (default)
1 - DISABLED
Web scenario status.
authentication - string 0 - NONE (default)
1 - BASIC
2 - NTLM
Authentication method.
http_user - string User name used for basic, HTTP or NTLM authentication.
http_password - string Password used for basic, HTTP or NTLM authentication.
verify_peer - string 0 - NO (default)
1 - YES
Whether to validate that the host's certificate is authentic.
verify_host - string 0 - NO (default)
1 - YES
Whether to validate that the host name for the connection matches the one in the host's certificate.
ssl_cert_file - string Name of the SSL certificate file used for client authentication (must be in PEM format).
ssl_key_file - string Name of the SSL private key file used for client authentication (must be in PEM format).
ssl_key_password - string SSL private key file password.
steps x Root element for web scenario steps.
name x string Web scenario step name.
url x string URL for monitoring.
query_fields - Root element for query fields - an array of HTTP fields that will be added to the URL when performing a request.
name x string Query field name.
value - string Query field value.
posts - HTTP POST variables as a string (raw post data) or as an array of HTTP fields (form field data).
name x string Post field name.
value x string Post field value.
variables - Root element of step-level variables (macros) that should be applied after this step.

If the variable value has a 'regex:' prefix, then its value is extracted from the data returned by this step according to the regular expression pattern following the 'regex:' prefix
name x string Variable name.
value x text Variable value.
headers - Root element for HTTP headers that will be sent when performing a request. Headers should be listed using the same syntax as they would appear in the HTTP protocol.
name x string Header name.
value x text Header value.
follow_redirects - string 0 - NO
1 - YES (default)
Follow HTTP redirects.
retrieve_mode - string 0 - BODY (default)
1 - HEADERS
2 - BOTH
HTTP response retrieve mode.
timeout - string Default: 15s Timeout of step execution. Seconds, time unit with suffix or user macro.
required - string Text that must be present in the response. Ignored if empty.
status_codes - string A comma delimited list of accepted HTTP status codes. Ignored if empty. For example: 200-201,210-299
tags - Root element for web scenario tags.
tag x string Tag name.
value - string Tag value.
Template dashboard tags
Element Element property Required Type Range1 Description
dashboards - Root element for template dashboards.
uuid x string Unique identifier for this dashboard.
name x string Template dashboard name.
display period - integer Display period of dashboard pages.
auto_start - string 0 - no
1 - yes
Slideshow auto start.
pages - Root element for template dashboard pages.
name - string Page name.
display period - integer Page display period.
sortorder - integer Page sorting order.
widgets - Root element for template dashboard widgets.
type x string Widget type.
name - string Widget name.
x - integer 0-23 Horizontal position from the left side of the template dashboard.
y - integer 0-62 Vertical position from the top of the template dashboard.
width - integer 1-24 Widget width.
height - integer 2-32 Widget height.
hide_header - string 0 - no
1 - yes
Hide widget header.
fields - Root element for the template dashboard widget fields.
type x string 0 - INTEGER
1 - STRING
3 - HOST
4 - ITEM
5 - ITEM_PROTOTYPE
6 - GRAPH
7 - GRAPH_PROTOTYPE
Widget field type.
name x string Widget field name.
value x mixed Widget field value, depending on the field type.
Footnotes

1 For string values, only the string will be exported (e.g. "ZABBIX_ACTIVE") without the numbering used in this table. The numbers for range values (corresponding to the API values) in this table is used for ordering only.
