13 Map

Overview

In the map widget you can display either:

  • a single configured network map;
  • one of the configured network maps in the map navigation tree (when clicking on the map name in the tree).

Configuration

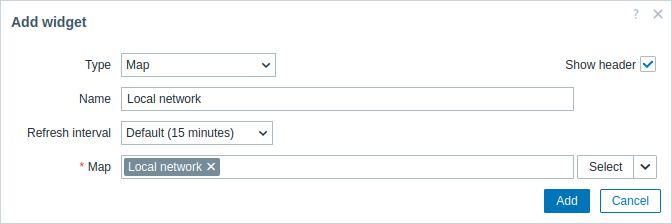

To configure, select Map as type:

In addition to the parameters that are common for all widgets, you may set the following specific options:

Source type Select to display:
Map - network map;
Map navigation tree - one of the maps in the selected map navigation tree.
Map Select the map to display.
This field is auto-complete so starting to type the name of a map will offer a dropdown of matching maps.
This option is available if 'Map' is selected as Source type.
Filter Select the map navigation tree to display the maps of.
This option is available if 'Map navigation tree' is selected as Source type.
