Connessione sicura al frontend

Panoramica

Questa sezione fornisce i passaggi di configurazione di Zabbix e esempi di configurazione per connessioni TLS sicure tra il frontend di Zabbix e il server Zabbix.

Configurazione

Per impostazione predefinita, la comunicazione tra il frontend Zabbix e il server Zabbix non è crittografata. Per una maggiore sicurezza, abilitare TLS su entrambi i lati. Di seguito è riportato un esempio del modo più semplice per farlo.

1. Generare certificati e chiavi.

Creare una directory di lavoro:

sudo mkdir -p /etc/zabbix/ssl && cd /etc/zabbix/ssl

Creare un certificato CA (modificare il valore MyZabbixCA in modo che corrisponda al nome comune effettivo):

sudo openssl genrsa -out ca.key 4096
sudo openssl req -new -x509 -days 3650 -key ca.key -out ca.crt -subj "/CN=MyZabbixCA/"

Generare una chiave privata e un certificato per il server Zabbix (modificare il valore zabbix-server.example.com in modo che corrisponda al nome comune effettivo):

sudo openssl genrsa -out server.key 2048
sudo openssl req -new -key server.key -out server.csr -subj "/CN=zabbix-server.example.com/"
sudo openssl x509 -req -days 365 -in server.csr -CA ca.crt -CAkey ca.key -CAcreateserial -sha256 -out server.crt

Generare una chiave privata e un certificato per il frontend Zabbix (modificare il valore zabbix-frontend-node in modo che corrisponda al nome comune effettivo):

sudo openssl genrsa -out frontend.key 2048
sudo openssl req -new -key frontend.key -out frontend.csr -subj "/CN=zabbix-frontend-node/"
sudo openssl x509 -req -days 365 -in frontend.csr -CA ca.crt -CAkey ca.key -CAcreateserial -sha256 -out frontend.crt

2. Impostare le autorizzazioni appropriate.

Per il server Zabbix (modificare il proprietario/gruppo in base all'utente del demone del server Zabbix della propria distribuzione):

sudo chown root:zabbix /etc/zabbix/ssl/server.{crt,key} /etc/zabbix/ssl/ca.crt
sudo chmod 640 /etc/zabbix/ssl/server.key
sudo chmod 644 /etc/zabbix/ssl/server.crt /etc/zabbix/ssl/ca.crt

Per il frontend (modificare il proprietario/gruppo in base all'utente del webserver della propria distribuzione):

sudo chown root:www-data /etc/zabbix/ssl/frontend.{crt,key}
sudo chmod 640 /etc/zabbix/ssl/frontend.key
sudo chmod 644 /etc/zabbix/ssl/frontend.crt

3. Configurare il server Zabbix.

Nel file di configurazione del server (zabbix_server.conf) aggiungere:

TLSFrontendAccept=cert
TLSCertFile=/etc/zabbix/ssl/server.crt
TLSKeyFile=/etc/zabbix/ssl/server.key
TLSCAFile=/etc/zabbix/ssl/ca.crt
# Facoltativo:
# TLSFrontendCertIssuer=CN=MyZabbixCA
# TLSFrontendCertSubject=CN=zabbix-frontend-node

Quindi riavviare il server:

sudo systemctl restart zabbix-server

4. Configurare il frontend Zabbix.

Durante l'installazione dell'interfaccia web, abilitare l'opzione Crittografa le connessioni dall'interfaccia web (e l'opzione Verifica l'emittente e il soggetto del certificato del server, se necessario) e compilare i campi File CA TLS, File della chiave TLS, File del certificato TLS (e i campi Emittente del certificato TLS del server e Soggetto del certificato TLS del server, se necessario):

Nelle installazioni esistenti, modificare i seguenti parametri nel file di configurazione del frontend:

$ZBX_SERVER_TLS['ACTIVE'] = 'true';
$ZBX_SERVER_TLS['CA_FILE'] = '/etc/zabbix/ssl/ca.crt';
$ZBX_SERVER_TLS['KEY_FILE'] = '/etc/zabbix/ssl/frontend.key';
$ZBX_SERVER_TLS['CERT_FILE'] = '/etc/zabbix/ssl/frontend.crt';
// Facoltativo:
// $ZBX_SERVER_TLS['CERTIFICATE_ISSUER']  = 'CN=MyZabbixCA';
// $ZBX_SERVER_TLS['CERTIFICATE_SUBJECT'] = 'CN=zabbix-server.example.com';

5. Verificare la crittografia confermando che non siano presenti messaggi di errore nel frontend Zabbix o nel file di log del server Zabbix:

tail -f /var/log/zabbix/zabbix_server.log

Troubleshooting

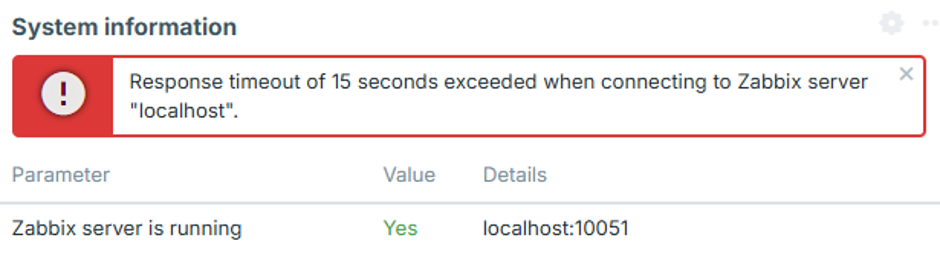

Incorrect or incomplete TLS configuration can cause errors in the Zabbix frontend or indicate that the Zabbix server is running but the connection is not established successfully:

To identify the exact configuration issue, set the Zabbix server log level to 4, reproduce the error in the frontend, and check the Zabbix server log for the corresponding error message.

The following cases describe common errors and their possible causes.

Frontend IP address is not allowed

The Zabbix server log contains an error similar to:

54283:20260819:105926.400 frontend connection from "127.0.0.1" is not allowed by FrontendAllowedIP

The connection is dropped after the TCP handshake because the frontend IP address is not authorized.

Add the frontend IP address to the FrontendAllowedIP parameter in zabbix_server.conf and restart the Zabbix server.

Unencrypted connection is not allowed

The Zabbix server log contains an error similar to:

56884:20260819:111154.285 frontend connection of type "unencrypted" is not allowed by TLSFrontendAccept

The Zabbix server is configured to accept only TLS connections, for example with TLSFrontendAccept=cert, but the frontend is attempting to connect without encryption.

Enable frontend encryption and configure the required TLS files in zabbix.conf.php, as described in step 4 of the Configuration.

Frontend attempts TLS while server expects unencrypted

The Zabbix server log contains an error similar to:

61091:20260819:115916.019 End of zbx_tls_accept():FAIL error:'TLS handshake set result code to 1: file ../ssl/record/rec_layer_s3.c line 317 func ssl3_read_n: error:0A000126:SSL routines::unexpected eof while reading: TLS write fatal alert "decode error"'

The exact error message depends on the OpenSSL version.

The Zabbix server is configured to accept only unencrypted connections, for example with TLSFrontendAccept=unencrypted, while the frontend is attempting to establish a TLS connection.

Configure the Zabbix server to accept TLS connections by setting TLSFrontendAccept=cert and defining TLSCertFile and TLSKeyFile in zabbix_server.conf. Alternatively, disable frontend encryption in zabbix.conf.php.

Frontend certificate is not trusted

The Zabbix server log contains an error similar to:

62248:20260819:124203.812 End of zbx_tls_accept():FAIL error:'self-signed certificate: TLS handshake set result code to 1: file ../ssl/statem/statem_srvr.c line 3522 func tls_process_client_certificate: error:0A000086:SSL routines::certificate verify failed: TLS write fatal alert "unknown CA"'

The frontend presented a certificate, but the Zabbix server does not trust the Certificate Authority (CA) that signed it.

The same problem can also appear in the frontend system information as:

fread(): SSL operation failed with code 1. OpenSSL Error messages:

error:0A000418:SSL routines::tlsv1 alert unknown ca [zabbix.php:17 → require_once() → ZBase->run() → ZBase->processRequest() → CController->run() → Widgets\SystemInfo\Actions\WidgetView->doAction() → CSystemInfoHelper::getData() → CSystemInfoHelper::getServerStatus() → CZabbixServer->getStatus() → CZabbixServer->request() → fread() → CConfigFile->{closure:/user/share/conf/zabbix.conf.php:89}() in conf/zabbix.conf.php:95]

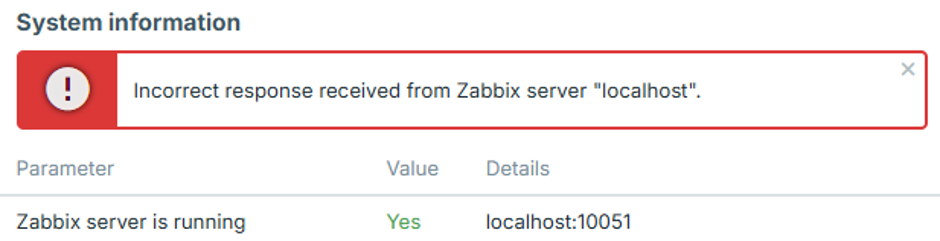

The frontend may also display "Incorrect response received from Zabbix server "localhost"".

Verify that the frontend certificate is signed by the CA specified by TLSCAFile in zabbix_server.conf.

TLS key file is not readable

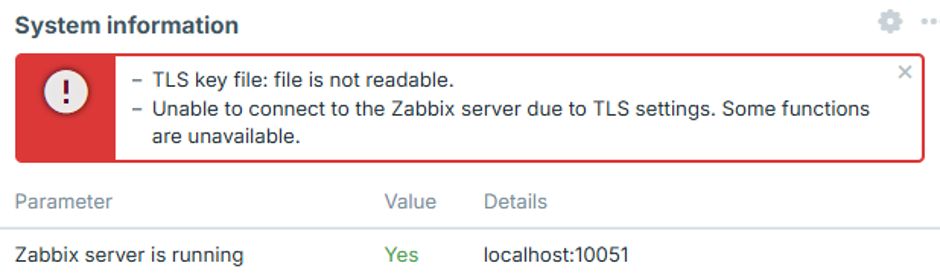

The frontend may display "TLS key file: file is not readable."

It may also display "Unable to connect to the Zabbix server due to TLS settings. Some functions are unavailable.".

The web server user does not have sufficient permissions to read one or more certificate, key, or CA files configured in zabbix.conf.php. This can occur when certificate files are stored in a restricted directory, such as /root/ or a user's home directory.

Move the certificate files to a directory accessible to the web server and set appropriate permissions as described in step 2 of the Configuration.

TLS files are invalid or corrupted

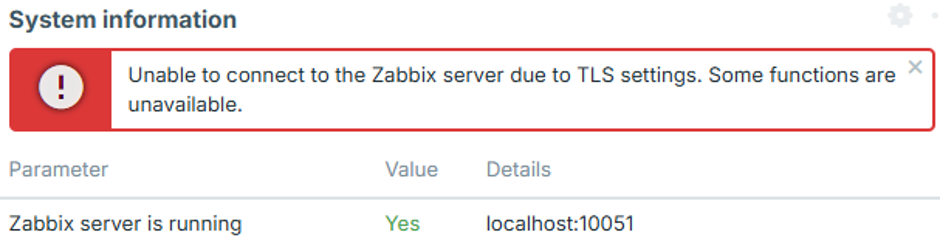

The frontend may display "Unable to connect to the Zabbix server due to TLS settings. Some functions are unavailable.".

This can occur when the configured certificate or key files exist and are readable, but their contents are empty, corrupted, or otherwise invalid. In this case, the frontend does not establish a connection to the Zabbix server, and no corresponding connection attempt appears in the Zabbix server log.

Verify that the certificate and key files contain valid, properly formatted data and that the private key corresponds to the certificate.
