2 テンプレート

概要

テンプレートは、多くの関連するオブジェクトと一緒にエクスポートされます。

テンプレートのエクスポートには以下の要素が含まれます:

  • リンクされたホストグループ
  • テンプレートデータ
  • 他のテンプレートとのリンク
  • ホストグループへのリンク
  • 直接リンクされたアイテム
  • 直接リンクされたトリガー
  • 直接リンクされたグラフ
  • 直接リンクされたダッシュボード
  • すべてのプロトタイプと直接リンクされたディスカバリルール
  • 直接リンクされたWebシナリオ
  • バリューマップ

エクスポート

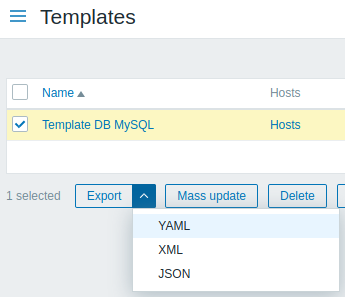

テンプレートをエクスポートするには、次の操作を行います。

  • 設定テンプレート
  • エクスポートするテンプレートのチェックボックスにマークを付けます。
  • リストの下にあるエクスポートをクリックします。

選択した形式に応じて、テンプレートはローカルにデフォルトファイル名でエクスポートされます。

  • zabbix_export_templates.yaml - YAML エクスポートの場合(エクスポートのデフォルトオプション)
  • zabbix_export_templates.xml - XML エクスポートの場合
  • zabbix_export_templates.json - JSON エクスポートの場合

インポート

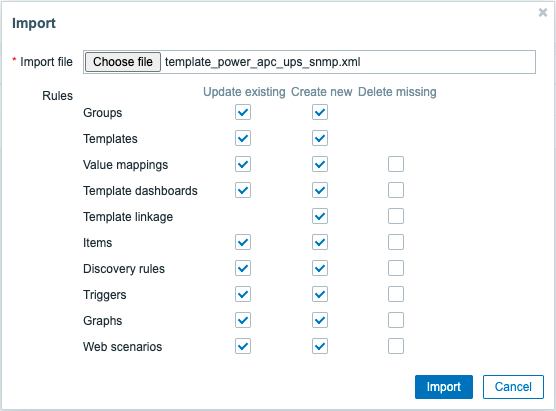

テンプレートをインポートするには、次の操作を行います。

  • 設定テンプレート に移動します。
  • 右側のインポートをクリックします。
  • インポートファイルを選択します。
  • インポートルールで必要なオプションをマークします。
  • インポートをクリックします。

すべての必須入力項目には赤いアスタリスクが表示されます。

インポートルール:

ルール 説明
Update existing 既存の要素は、インポートファイルから取得したデータで更新されます。そうでない場合は、更新されません。
Create new インポートファイルのデータを使用して新しい要素を追加します。そうでない場合は、追加されません。
Delete missing インポートファイルに存在しない既存の要素は削除されます。そうでない場合は、削除されません。テンプレート・リンクに Delete missing が指定されている場合、インポート・ファイルに存在しない既存のテンプレート・リンケージは、リンクされていない可能性のあるテンプレートから継承されたすべてのエンティティ(アイテム、トリガーなど)と共にテンプレートから削除されます。

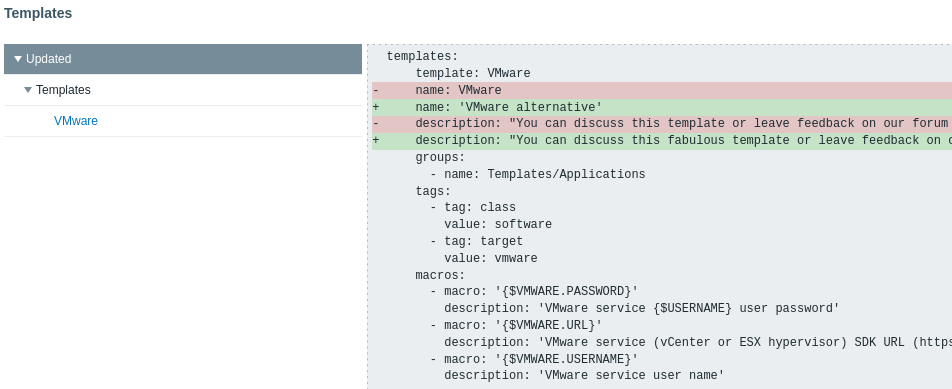

次の画面では、インポートされたテンプレートの内容を確認することができます。 新しいテンプレートであれば、すべての要素が緑色で表示されます。 既存のテンプレートを更新する場合、新しいテンプレート要素は緑色でハイライトされ、削除されたテンプレート要素は赤色で、変更のない要素は灰色の背景で表示されます。

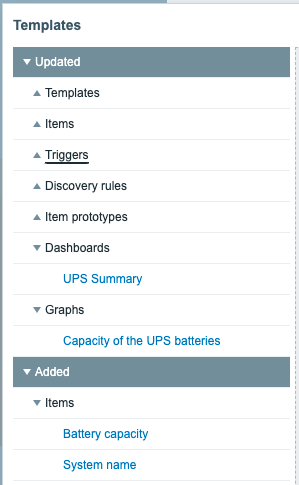

左のメニューから、変更点の一覧を表示することができます。 セクションUpdatedは、既存のテンプレート要素に加えられたすべての変更点をハイライト表示します。 セクション Added は、新しいテンプレート要素をリストアップします。 各セクションの要素は、要素の種類によってグループ化されています。 グレーの矢印を押して、要素のグループを展開または折りたたみます。

テンプレートの変更を確認し、インポートを押してテンプレートのインポートを実行します。 フロントエンドにインポートの成功または失敗のメッセージが表示されます。

エクスポートフォーマット

YAMLでのエクスポートフォーマット:

zabbix_export:
         version: '6.0'
         date: '2021-08-31T12:40:55Z'
         groups:
           -
             uuid: a571c0d144b14fd4a87a9d9b2aa9fcd6
             name: Templates/Applications
         templates:
           -
             uuid: 56079badd056419383cc26e6a4fcc7e0
             template: VMware
             name: VMware
             description: |
               You can discuss this template or leave feedback on our forum https://www.zabbix.com/forum/zabbix-suggestions-and-feedback/

               Template tooling version used: 0.38
             templates:
               -
                 name: 'VMware macros'
             groups:
               -
                 name: Templates/Applications
             items:
               -
                 uuid: 5ce209f4d94f460488a74a92a52d92b1
                 name: 'VMware: Event log'
                 type: SIMPLE
                 key: 'vmware.eventlog[{$VMWARE.URL},skip]'
                 history: 7d
                 trends: '0'
                 value_type: LOG
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'Collect VMware event log. See also: https://www.zabbix.com/documentation/6.0/manual/config/items/preprocessing/examples#filtering_vmware_event_log_records'
                 tags:
                   -
                     tag: Application
                     value: VMware
               -
                 uuid: ee2edadb8ce943ef81d25dbbba8667a4
                 name: 'VMware: Full name'
                 type: SIMPLE
                 key: 'vmware.fullname[{$VMWARE.URL}]'
                 delay: 1h
                 history: 7d
                 trends: '0'
                 value_type: CHAR
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'VMware service full name.'
                 preprocessing:
                   -
                     type: DISCARD_UNCHANGED_HEARTBEAT
                     parameters:
                       - 1d
                 tags:
                   -
                     tag: Application
                     value: VMware
               -
                 uuid: a0ec9145f2234fbea79a28c57ebdb44d
                 name: 'VMware: Version'
                 type: SIMPLE
                 key: 'vmware.version[{$VMWARE.URL}]'
                 delay: 1h
                 history: 7d
                 trends: '0'
                 value_type: CHAR
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'VMware service version.'
                 preprocessing:
                   -
                     type: DISCARD_UNCHANGED_HEARTBEAT
                     parameters:
                       - 1d
                 tags:
                   -
                     tag: Application
                     value: VMware
             discovery_rules:
               -
                 uuid: 16ffc933cce74cf28a6edf306aa99782
                 name: 'Discover VMware clusters'
                 type: SIMPLE
                 key: 'vmware.cluster.discovery[{$VMWARE.URL}]'
                 delay: 1h
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'Discovery of clusters'
                 item_prototypes:
                   -
                     uuid: 46111f91dd564a459dbc1d396e2e6c76
                     name: 'VMware: Status of "{#CLUSTER.NAME}" cluster'
                     type: SIMPLE
                     key: 'vmware.cluster.status[{$VMWARE.URL},{#CLUSTER.NAME}]'
                     history: 7d
                     username: '{$VMWARE.USERNAME}'
                     password: '{$VMWARE.PASSWORD}'
                     description: 'VMware cluster status.'
                     valuemap:
                       name: 'VMware status'
                     tags:
                       -
                         tag: Application
                         value: VMware
               -
                 uuid: 8fb6a45cbe074b0cb6df53758e2c6623
                 name: 'Discover VMware datastores'
                 type: SIMPLE
                 key: 'vmware.datastore.discovery[{$VMWARE.URL}]'
                 delay: 1h
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 item_prototypes:
                   -
                     uuid: 4b61838ba4c34e709b25081ae5b059b5
                     name: 'VMware: Average read latency of the datastore {#DATASTORE}'
                     type: SIMPLE
                     key: 'vmware.datastore.read[{$VMWARE.URL},{#DATASTORE},latency]'
                     history: 7d
                     username: '{$VMWARE.USERNAME}'
                     password: '{$VMWARE.PASSWORD}'
                     description: 'Amount of time for a read operation from the datastore (milliseconds).'
                     tags:
                       -
                         tag: Application
                         value: VMware
                   -
                     uuid: 5355c401dc244bc588ccd18767577c93
                     name: 'VMware: Free space on datastore {#DATASTORE} (percentage)'
                     type: SIMPLE
                     key: 'vmware.datastore.size[{$VMWARE.URL},{#DATASTORE},pfree]'
                     delay: 5m
                     history: 7d
                     value_type: FLOAT
                     units: '%'
                     username: '{$VMWARE.USERNAME}'
                     password: '{$VMWARE.PASSWORD}'
                     description: 'VMware datastore space in percentage from total.'
                     tags:
                       -
                         tag: Application
                         value: VMware
                   -
                     uuid: 84f13c4fde2d4a17baaf0c8c1eb4f2c0
                     name: 'VMware: Total size of datastore {#DATASTORE}'
                     type: SIMPLE
                     key: 'vmware.datastore.size[{$VMWARE.URL},{#DATASTORE}]'
                     delay: 5m
                     history: 7d
                     units: B
                     username: '{$VMWARE.USERNAME}'
                     password: '{$VMWARE.PASSWORD}'
                     description: 'VMware datastore space in bytes.'
                     tags:
                       -
                         tag: Application
                         value: VMware
                   -
                     uuid: 540cd0fbc56c4b8ea19f2ff5839ce00d
                     name: 'VMware: Average write latency of the datastore {#DATASTORE}'
                     type: SIMPLE
                     key: 'vmware.datastore.write[{$VMWARE.URL},{#DATASTORE},latency]'
                     history: 7d
                     username: '{$VMWARE.USERNAME}'
                     password: '{$VMWARE.PASSWORD}'
                     description: 'Amount of time for a write operation to the datastore (milliseconds).'
                     tags:
                       -
                         tag: Application
                         value: VMware
               -
                 uuid: a5bc075e89f248e7b411d8f960897a08
                 name: 'Discover VMware hypervisors'
                 type: SIMPLE
                 key: 'vmware.hv.discovery[{$VMWARE.URL}]'
                 delay: 1h
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'Discovery of hypervisors.'
                 host_prototypes:
                   -
                     uuid: 051a1469d4d045cbbf818fcc843a352e
                     host: '{#HV.UUID}'
                     name: '{#HV.NAME}'
                     group_links:
                       -
                         group:
                           name: Templates/Applications
                     group_prototypes:
                       -
                         name: '{#CLUSTER.NAME}'
                       -
                         name: '{#DATACENTER.NAME}'
                     templates:
                       -
                         name: 'VMware Hypervisor'
                     macros:
                       -
                         macro: '{$VMWARE.HV.UUID}'
                         value: '{#HV.UUID}'
                         description: 'UUID of hypervisor.'
                     custom_interfaces: 'YES'
                     interfaces:
                       -
                         ip: '{#HV.IP}'
               -
                 uuid: 9fd559f4e88c4677a1b874634dd686f5
                 name: 'Discover VMware VMs'
                 type: SIMPLE
                 key: 'vmware.vm.discovery[{$VMWARE.URL}]'
                 delay: 1h
                 username: '{$VMWARE.USERNAME}'
                 password: '{$VMWARE.PASSWORD}'
                 description: 'Discovery of guest virtual machines.'
                 host_prototypes:
                   -
                     uuid: 23b9ae9d6f33414880db1cb107115810
                     host: '{#VM.UUID}'
                     name: '{#VM.NAME}'
                     group_links:
                       -
                         group:
                           name: Templates/Applications
                     group_prototypes:
                       -
                         name: '{#CLUSTER.NAME} (vm)'
                       -
                         name: '{#DATACENTER.NAME}/{#VM.FOLDER} (vm)'
                       -
                         name: '{#HV.NAME}'
                     templates:
                       -
                         name: 'VMware Guest'
                     macros:
                       -
                         macro: '{$VMWARE.VM.UUID}'
                         value: '{#VM.UUID}'
                         description: 'UUID of guest virtual machine.'
                     custom_interfaces: 'YES'
                     interfaces:
                       -
                         ip: '{#VM.IP}'
             valuemaps:
               -
                 uuid: 3c59c22905054d42ac4ee8b72fe5f270
                 name: 'VMware status'
                 mappings:
                   -
                     value: '0'
                     newvalue: gray
                   -
                     value: '1'
                     newvalue: green
                   -
                     value: '2'
                     newvalue: yellow
                   -
                     value: '3'
                     newvalue: red

Element タグ

Element タグの値については、以下の表で説明する。

Template タグ
Element Element プロパティ 必須? レンジ 説明
templates - Root element for templates.
uuid x string Unique identifier for this template.
template x string Unique template name.
name - string Visible template name.
description - text Template description.
groups x Root element for template host groups.
uuid x string Unique identifier for this host group.
name x string Host group name.
templates - Root element for linked templates.
name x string Template name.
tags - Root element for template tags.
tag x string Tag name.
value - string Tag value.
macros - Root element for template user macros.
macro x string User macro name.
type - string 0 - TEXT (default)
1 - SECRET_TEXT
2 - VAULT
Type of the macro.
value - string User macro value.
description - string User macro description.
valuemaps - Root element for template value maps.
uuid x string Unique identifier for this value map.
name x string Value map name.
mapping - Root element for mappings.
value x string Value of a mapping.
newvalue x string New value of a mapping.
Template item タグ
Element Element プロパティ 必須? レンジ1 説明
items - Root element for items.
uuid x string Unique identifier for the item.
name x string Item name.
type - string 0 - ZABBIX_PASSIVE (default)
2 - TRAP
3 - SIMPLE
5 - INTERNAL
7 - ZABBIX_ACTIVE
10 - EXTERNAL
11 - ODBC
12 - IPMI
13 - SSH
14 - TELNET
15 - CALCULATED
16 - JMX
17 - SNMP_TRAP
18 - DEPENDENT
19 - HTTP_AGENT
20 - SNMP_AGENT
21 - ITEM_TYPE_SCRIPT
Item type.
snmp_oid - string SNMP object ID.

Required by SNMP items.
key x string Item key.
delay - string Default: 1m Update interval of the item.

Accepts seconds or a time unit with suffix (30s, 1m, 2h, 1d).
Optionally one or more custom intervals can be specified either as flexible intervals or scheduling.
Multiple intervals are separated by a semicolon.
User macros may be used. A single macro has to fill the whole field. Multiple macros in a field or macros mixed with text are not supported.
Flexible intervals may be written as two macros separated by a forward slash (e.g. {$FLEX_INTERVAL}/{$FLEX_PERIOD}).
history - string Default: 90d A time unit of how long the history data should be stored. Time unit with suffix, user macro or LLD macro.
trends - string Default: 365d A time unit of how long the trends data should be stored. Time unit with suffix, user macro or LLD macro.
status - string 0 - ENABLED (default)
1 - DISABLED
Item status.
value_type - string 0 - FLOAT
1 - CHAR
2 - LOG
3 - UNSIGNED (default)
4 - TEXT
Received value type.
allowed_hosts - string List of IP addresses (comma delimited) of hosts allowed sending data for the item.

Used by trapper and HTTP agent items.
units - string Units of returned values (bps, B, etc).
params - text Additional parameters depending on the type of the item:
- executed script for Script, SSH and Telnet items;
- SQL query for database monitor items;
- formula for calculated items.
ipmi_sensor - string IPMI sensor.

Used only by IPMI items.
authtype - string Authentication type for SSH agent items:
0 - PASSWORD (default)
1 - PUBLIC_KEY

Authentication type for HTTP agent items:
0 - NONE (default)
1 - BASIC
2 - NTLM
Authentication type.

Used only by SSH and HTTP agent items.
username - string Username for authentication.
Used by simple check, SSH, Telnet, database monitor, JMX and HTTP agent items.

Required by SSH and Telnet items.
When used by JMX agent, password should also be specified together with the username or both properties should be left blank.
password - string Password for authentication.
Used by simple check, SSH, Telnet, database monitor, JMX and HTTP agent items.

When used by JMX agent, username should also be specified together with the password or both properties should be left blank.
publickey - string Name of the public key file.

Required for SSH agent items.
privatekey - string Name of the private key file.

Required for SSH agent items.
port - string Custom port monitored by the item.
Can contain user macros.

Used only by SNMP items.
description - text Item description.
inventory_link - string 0 - NONE

Capitalized host inventory field name. For example:
4 - ALIAS
6 - OS_FULL
14 - HARDWARE
etc.
Host inventory field that is populated by the item.

Refer to the host inventory page for a list of supported host inventory fields and their IDs.
logtimefmt - string Format of the time in log entries.
Used only by log items.
jmx_endpoint - string JMX endpoint.

Used only by JMX agent items.
url - string URL string.

Required only for HTTP agent items.
allow_traps - string 0 - NO (default)
1 - YES
Allow to populate value as in a trapper item.

Used only by HTTP agent items.
follow_redirects - string 0 - NO
1 - YES (default)
Follow HTTP response redirects while pooling data.

Used only by HTTP agent items.
headers - Root element for HTTP(S) request headers, where header name is used as key and header value as value.
Used only by HTTP agent items.
name x string Header name.
value x string Header value.
http_proxy - string HTTP(S) proxy connection string.

Used only by HTTP agent items.
output_format - string 0 - RAW (default)
1 - JSON
How to process response.

Used only by HTTP agent items.
post_type - string 0 - RAW (default)
2 - JSON
3 - XML
Type of post data body.

Used only by HTTP agent items.
posts - string HTTP(S) request body data.

Used only by HTTP agent items.
query_fields - Root element for query parameters.

Used only by HTTP agent items.
name x string Parameter name.
value - string Parameter value.
request_method - string 0 - GET (default)
1 - POST
2 - PUT
3 - HEAD
Request method.

Used only by HTTP agent items.
retrieve_mode - string 0 - BODY (default)
1 - HEADERS
2 - BOTH
What part of response should be stored.

Used only by HTTP agent items.
ssl_cert_file - string Public SSL Key file path.

Used only by HTTP agent items.
ssl_key_file - string Private SSL Key file path.

Used only by HTTP agent items.
ssl_key_password - string Password for SSL Key file.

Used only by HTTP agent items.
status_codes - string Ranges of required HTTP status codes separated by commas. Supports user macros.
Example: 200,200-{$M},{$M},200-400

Used only by HTTP agent items.
timeout - string Item data polling request timeout. Supports user macros.

Used by HTTP agent and Script items.
verify_host - string 0 - NO (default)
1 - YES
Validate if host name in URL is in Common Name field or a Subject Alternate Name field of host certificate.

Used only by HTTP agent items.
verify_peer - string 0 - NO (default)
1 - YES
Validate if host certificate is authentic.

Used only by HTTP agent items.
parameters - Root element for user-defined parameters.

Used only by Script items.
name x string Parameter name.

Used only by Script items.
value - string Parameter value.

Used only by Script items.
value map - Value map.
name x string Name of the value map to use for the item.
preprocessing - Root element for item value preprocessing.
step - Individual item value preprocessing step.
type x string 1 - MULTIPLIER
2 - RTRIM
3 - LTRIM
4 - TRIM
5 - REGEX
6 - BOOL_TO_DECIMAL
7 - OCTAL_TO_DECIMAL
8 - HEX_TO_DECIMAL
9 - SIMPLE_CHANGE (calculated as (received value-previous value))
10 - CHANGE_PER_SECOND (calculated as (received value-previous value)/(time now-time of last check))
11 - XMLPATH
12 - JSONPATH
13 - IN_RANGE
14 - MATCHES_REGEX
15 - NOT_MATCHES_REGEX
16 - CHECK_JSON_ERROR
17 - CHECK_XML_ERROR
18 - CHECK_REGEX_ERROR
19 - DISCARD_UNCHANGED
20 - DISCARD_UNCHANGED_HEARTBEAT
21 - JAVASCRIPT
22 - PROMETHEUS_PATTERN
23 - PROMETHEUS_TO_JSON
24 - CSV_TO_JSON
25 - STR_REPLACE
26 - CHECK_NOT_SUPPORTED
Type of the item value preprocessing step.
parameters - Root element for parameters of the item value preprocessing step.
parameter x string Individual parameter of the item value preprocessing step.
error_handler - string 0 - ORIGINAL_ERROR (default)
1 - DISCARD_VALUE
2 - CUSTOM_VALUE
3 - CUSTOM_ERROR
Action type used in case of preprocessing step failure.
error_handler_params - string Error handler parameters used with 'error_handler'.
master_item - Individual item master item.

Required by dependent items.
key x string Dependent item master item key value.

Recursion up to 3 dependent items and maximum count of dependent items equal to 29999 are allowed.
triggers - Root element for simple triggers.
For trigger element tag values, see template trigger tags.
tags - Root element for item tags.
tag x string Tag name.
value - string Tag value.
Template low-level discovery rule タグ
Element Element プロパティ 必須? レンジ 説明
discovery_rules - Root element for low-level discovery rules.
For most of the element tag values, see element tag values for a regular item. Only the tags that are specific to low-level discovery rules, are described below.
type - string 0 - ZABBIX_PASSIVE (default)
2 - TRAP
3 - SIMPLE
5 - INTERNAL
7 - ZABBIX_ACTIVE
10 - EXTERNAL
11 - ODBC
12 - IPMI
13 - SSH
14 - TELNET
16 - JMX
18 - DEPENDENT
19 - HTTP_AGENT
20 - SNMP_AGENT
Item type.
lifetime - string Default: 30d Time period after which items that are no longer discovered will be deleted. Seconds, time unit with suffix or user macro.
filter Individual filter.
evaltype - string 0 - AND_OR (default)
1 - AND
2 - OR
3 - FORMULA
Logic to use for checking low-level discovery rule filter conditions.
formula - string Custom calculation formula for filter conditions.
conditions - Root element for filter conditions.
macro x string Low-level discovery macro name.
value - string Filter value: regular expression or global regular expression.
operator - string 8 - MATCHES_REGEX (default)
9 - NOT_MATCHES_REGEX
Condition operator.
formulaid x character Arbitrary unique ID that is used to reference a condition from the custom expression. Can only contain capital-case letters. The ID must be defined by the user when modifying filter conditions, but will be generated anew when requesting them afterward.
lld_macro_paths - Root element for LLD macro paths.
lld_macro x string Low-level discovery macro name.
path x string Selector for value which will be assigned to the corresponding macro.
preprocessing - LLD rule value preprocessing.
step - Individual LLD rule value preprocessing step.
For most of the element tag values, see element tag values for a template item value preprocessing. Only the tags that are specific to template low-level discovery value preprocessing, are described below.
type x string 5 - REGEX
11 - XMLPATH
12 - JSONPATH
15 - NOT_MATCHES_REGEX
16 - CHECK_JSON_ERROR
17 - CHECK_XML_ERROR
20 - DISCARD_UNCHANGED_HEARTBEAT
21 - JAVASCRIPT
23 - PROMETHEUS_TO_JSON
24 - CSV_TO_JSON
25 - STR_REPLACE
Type of the item value preprocessing step.
trigger_prototypes - Root element for trigger prototypes.
For trigger prototype element tag values, see regular template trigger tags.
graph_prototypes - Root element for graph prototypes.
For graph prototype element tag values, see regular template graph tags.
host_prototypes - Root element for host prototypes.
For host prototype element tag values, see regular host tags.
item_prototypes - Root element for item prototypes.
For item prototype element tag values, see regular template item tags.
master_item - Individual item prototype master item/item prototype data.
key x string Dependent item prototype master item/item prototype key value.

Required for a dependent item.
Template trigger タグ
Element Element プロパティ 必須? レンジ1 説明
triggers - Root element for triggers.
uuid x string Unique identifier for this trigger.
expression x string Trigger expression.
recovery_mode - string 0 - EXPRESSION (default)
1 - RECOVERY_EXPRESSION
2 - NONE
Basis for generating OK events.
recovery_expression - string Trigger recovery expression.
name x string Trigger name.
correlation_mode - string 0 - DISABLED (default)
1 - TAG_VALUE
Correlation mode (no event correlation or event correlation by tag).
correlation_tag - string The tag name to be used for event correlation.
url - string URL associated with the trigger.
status - string 0 - ENABLED (default)
1 - DISABLED
Trigger status.
priority - string 0 - NOT_CLASSIFIED (default)
1 - INFO
2 - WARNING
3 - AVERAGE
4 - HIGH
5 - DISASTER
Trigger severity.
description - text Trigger description.
type - string 0 - SINGLE (default)
1 - MULTIPLE
Event generation type (single problem event or multiple problem events).
manual_close - string 0 - NO (default)
1 - YES
Manual closing of problem events.
dependencies - Root element for dependencies.
name x string Dependency trigger name.
expression x string Dependency trigger expression.
recovery_expression - string Dependency trigger recovery expression.
tags - Root element for trigger tags.
tag x string Tag name.
value - string Tag value.
Template graph タグ
Element Element プロパティ 必須? レンジ1 説明
graphs - Root element for graphs.
uuid x string Unique identifier for this graph.
name x string Graph name.
width - integer 20-65535 (default: 900) Graph width, in pixels. Used for preview and for pie/exploded graphs.
height - integer 20-65535 (default: 200) Graph height, in pixels. Used for preview and for pie/exploded graphs.
yaxismin - double Default: 0 Value of Y axis minimum.

Used if 'ymin_type_1' is FIXED.
yaxismax - double Default: 0 Value of Y axis maximum.

Used if 'ymax_type_1' is FIXED.
show_work_period - string 0 - NO
1 - YES (default)
Highlight non-working hours.

Used by normal and stacked graphs.
show_triggers - string 0 - NO
1 - YES (default)
Display simple trigger values as a line.

Used by normal and stacked graphs.
type - string 0 - NORMAL (default)
1 - STACKED
2 - PIE
3 - EXPLODED
Graph type.
show_legend - string 0 - NO
1 - YES (default)
Display graph legend.
show_3d - string 0 - NO (default)
1 - YES
Enable 3D style.

Used by pie and exploded pie graphs.
percent_left - double Default:0 Show the percentile line for left axis.

Used only for normal graphs.
percent_right - double Default:0 Show the percentile line for right axis.

Used only for normal graphs.
ymin_type_1 - string 0 - CALCULATED (default)
1 - FIXED
2 - ITEM
Minimum value of Y axis.

Used by normal and stacked graphs.
ymax_type_1 - string 0 - CALCULATED (default)
1 - FIXED
2 - ITEM
Maximum value of Y axis.

Used by normal and stacked graphs.
ymin_item_1 - Individual item details.

Required if 'ymin_type_1' is ITEM.
host x string Item host.
key x string Item key.
ymax_item_1 - Individual item details.

Required if 'ymax_type_1' is ITEM.
host x string Item host.
key x string Item key.
graph_items x Root element for graph items.
sortorder - integer Draw order. The smaller value is drawn first. Can be used to draw lines or regions behind (or in front of) another.
drawtype - string 0 - SINGLE_LINE (default)
1 - FILLED_REGION
2 - BOLD_LINE
3 - DOTTED_LINE
4 - DASHED_LINE
5 - GRADIENT_LINE
Draw style of the graph item.

Used only by normal graphs.
color - string Element color (6 symbols, hex).
yaxisside - string 0 - LEFT (default)
1 - RIGHT
Side of the graph where the graph item's Y scale will be drawn.

Used by normal and stacked graphs.
calc_fnc - string 1 - MIN
2 - AVG (default)
4 - MAX
7 - ALL (minimum, average and maximum; used only by simple graphs)
9 - LAST (used only by pie and exploded pie graphs)
Data to draw if more than one value exists for an item.
type - string 0 - SIMPLE (default)
2 - GRAPH_SUM (value of the item represents the whole pie; used only by pie and exploded pie graphs)
Graph item type.
item x Individual item.
host x string Item host.
key x string Item key.
Template web シナリオ タグ
Element Element プロパティ 必須? レンジ1 説明
httptests - Root element for web scenarios.
uuid x string Unique identifier for this web scenario.
name x string Web scenario name.
delay - string Default: 1m Frequency of executing the web scenario. Seconds, time unit with suffix or user macro.
attempts - integer 1-10 (default: 1) The number of attempts for executing web scenario steps.
agent - string Default: Zabbix Client agent. Zabbix will pretend to be the selected browser. This is useful when a website returns different content for different browsers.
http_proxy - string Specify an HTTP proxy to use, using the format: http://[username[:password]@]proxy.example.com[:port]
variables - Root element for scenario-level variables (macros) that may be used in scenario steps.
name x text Variable name.
value x text Variable value.
headers - Root element for HTTP headers that will be sent when performing a request. Headers should be listed using the same syntax as they would appear in the HTTP protocol.
name x text Header name.
value x text Header value.
status - string 0 - ENABLED (default)
1 - DISABLED
Web scenario status.
authentication - string 0 - NONE (default)
1 - BASIC
2 - NTLM
Authentication method.
http_user - string User name used for basic, HTTP or NTLM authentication.
http_password - string Password used for basic, HTTP or NTLM authentication.
verify_peer - string 0 - NO (default)
1 - YES
Verify the SSL certificate of the web server.
verify_host - string 0 - NO (default)
1 - YES
Verify that the Common Name field or the Subject Alternate Name field of the web server certificate matches.
ssl_cert_file - string Name of the SSL certificate file used for client authentication (must be in PEM format).
ssl_key_file - string Name of the SSL private key file used for client authentication (must be in PEM format).
ssl_key_password - string SSL private key file password.
steps x Root element for web scenario steps.
name x string Web scenario step name.
url x string URL for monitoring.
query_fields - Root element for query fields - an array of HTTP fields that will be added to the URL when performing a request.
name x string Query field name.
value - string Query field value.
posts - HTTP POST variables as a string (raw post data) or as an array of HTTP fields (form field data).
name x string Post field name.
value x string Post field value.
variables - Root element of step-level variables (macros) that should be applied after this step.

If the variable value has a 'regex:' prefix, then its value is extracted from the data returned by this step according to the regular expression pattern following the 'regex:' prefix
name x string Variable name.
value x string Variable value.
headers - Root element for HTTP headers that will be sent when performing a request. Headers should be listed using the same syntax as they would appear in the HTTP protocol.
name x string Header name.
value x string Header value.
follow_redirects - string 0 - NO
1 - YES (default)
Follow HTTP redirects.
retrieve_mode - string 0 - BODY (default)
1 - HEADERS
2 - BOTH
HTTP response retrieve mode.
timeout - string Default: 15s Timeout of step execution. Seconds, time unit with suffix or user macro.
required - string Text that must be present in the response. Ignored if empty.
status_codes - string A comma delimited list of accepted HTTP status codes. Ignored if empty. For example: 200-201,210-299
tags - Root element for web scenario tags.
tag x string Tag name.
value - string Tag value.
Template dashboard タグ
Element Element プロパティ 必須 レンジ1 説明
dashboards - Root element for template dashboards.
uuid x string Unique identifier for this dashboard.
name x string Template dashboard name.
display period - integer Display period of dashboard pages.
auto_start - string 0 - no
1 - yes
Slideshow auto start.
pages - Root element for template dashboard pages.
name - string Page name.
display period - integer Page display period.
sortorder - integer Page sorting order.
widgets - Root element for template dashboard widgets.
type x string Widget type.
name - string Widget name.
x - integer 0-23 Horizontal position from the left side of the template dashboard.
y - integer 0-62 Vertical position from the top of the template dashboard.
width - integer 1-24 Widget width.
height - integer 2-32 Widget height.
hide_header - string 0 - no
1 - yes
Hide widget header.
fields - Root element for the template dashboard widget fields.
type x string 0 - INTEGER
1 - STRING
3 - HOST
4 - ITEM
5 - ITEM_PROTOTYPE
6 - GRAPH
7 - GRAPH_PROTOTYPE
Widget field type.
name x string Widget field name.
value x mixed Widget field value, depending on the field type.
脚注

文字列値の場合は、番号付けは行われず、文字列のみがエクスポートされます(例: 「ZABBIX_ACTIVE」)。
このテーブルの範囲値(API 値に対応)の番号は、順序付けにのみ使用されます。
